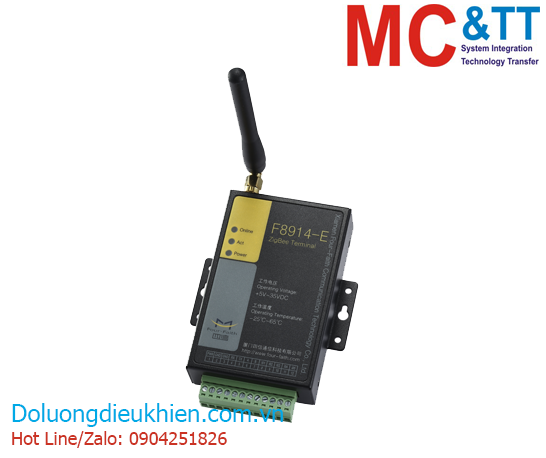

F8514: Modem công nghiệp TD-SCDMA+ ZigBee +RS-232/485 APN/VPDN
Features
● Support data transfer by cellular and ZigBee network
● Embedded Real Time Clock(RTC) circuit which can realize timing online/offline function
● TTL logic level RS232 interface can be customized
● Support APN/VPDN
● Supply 5 I/O channels, compatible 2 pulse wave output channels, 2 analog inputs and one pulse input counters
● Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
● Support hardware and software WDT
● Provide management software for remote management
● Support low power consumption mode, including multi-sleep and trigger modes to reduce the power dissipation farthest
 |
| F8514 ZigBee+TD-SCDMA IP MODEM |
|
F8514 ZigBee+TD-SCDMA IP MODEM is a kind of data terminal device that provides data transfer function by public EDGE and ZigBe-e network.It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on |
|
 |
| |
| Environmental Adaptability |
| Designed for harsh and unattended environment |
|
 |
| |
 |
|
Powerful network conversion capability |
|
ZigBee to TCP/IP protocol (4G/3G/2.5G network) implement two kinds of network communication agreement |
|
| |
|
ModbusIntegrated Modbus standard protocol |
|
Remote PC can collect and transfer the data by 4G/3G/2.5G and ZigBee network. |
|
 |
| |
 |
|
Simultaneous transmission of multiple data centers |
|
Support multiple data transmission and multi-data center backup center synchronous transmission (five data centers), applicable to rapid or large transmission of information |
|
| |
|
Reliable networking and transparent data communication |
|
Using high-performance industrial grade wireless modulehigh stability and high precision industrial grade components, a very wide temperature design, easy to adapt to cold temperature working environment that supports transparent data transmission, can adapt to any standard or non-standard user protocol.。 |
|
 |
| |
 |
| WDT watchdog |
|
Running protection system management and effective monitoring to ensure system stability. |
|
| |
|
|
Rich interfaces, convenient for customers to use |
|
Provide 5 x I/O, can achieve 5 digital input and output; Compatible with 3 pulse outputs, 3 analog inputs, 2 pulse counting function. Provide a standard RS232, RS485 interface for direct connection of serial devices. |
。 |
 |
Specification
Cellular Specification
| Item |
Content |
| Cellular Module |
Industrial cellular module |
| Standard and Band |
TD-SCDMA/HSDPA/HSUPA 1880-1920/2010-2025MHz
GSM850/900/1800/1900MHz
GPRS/EDGE CLASS 12 |
| Bandwidth |
Download speed:2.8Mbps, upload speed:2.2Mbpsn |
| TX power |
<24dBm |
| RX sensitivity |
<-108dBm |
ZigBee Specification
| Item |
Content |
| ZigBee Module |
Industrial ZigBee module |
| Standard and Band |
IEEE 802.15.4
ISM 2.4 GHz |
| Indoor/Urban Range |
60m
90m(for enhanced version) |
| Outdoor/RF Line-of-Sight Range |
1200m
3200m(for enhanced version) |
| Transmit Power |
3.1 mw (+5dBm) /Normal mode, 6.3 mw (+8dBm)/Boost mode
63 mw (+18dBm) (for enhanced version) |
| Bandwidth |
250Kbps |
| Receiver Sensitivity |
-102dBm |
| Network Topologies |
Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh |
| Number of channels |
16 Direct Sequence Channels
15 Direct Sequence Channels (for enhanced version) |
| Channels |
11 to 26
11 to 25 (for enhanced version) |
Hardware System
| Item |
Content |
| CPU |
Industrial 32 bits CPU |
| FLASH |
512KB (Extendable) |
| SRAM |
256KB(Extendable) |
Interface Type
| Item |
Content |
| Serial |
1 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps |
| Indicator |
"Power", "ACT", "Online", "ZigBee" |
| Antenna |
Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
ZigBee: Standard SMA female interface, 50 ohm, lighting protection(optional) |
| SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power |
Terminal block interface, reverse-voltage and overvoltage protection |
Power Input
| Item |
Content |
| Standard Power |
DC 12V/0.5A |
| Power Range |
DC 5~35V |
Power Consumption
| Working States |
Power Consumption |
| Communication |
50-85mA@12VDC；115-160mA@5VDC |
| Standby |
25mA@12VDC；45mA@5VDC |
| Sleep |
8mA@12VDC；18mA@5VDC |
| Timing Power Off |
0.6mA@12VDC；1mA@5VDC |
Physical Characteristics
| Item |
Content |
| Housing |
Iron, providing IP30 protection |
| Dimensions |
91x58.5x22 mm |
| Weight |
210g |
Environmental Limits
| Item |
Content |
| Operating Temperature |
-25~+65ºC (-13~+149℉) |
| Extended Operating Temperature |
-30~+75ºC (-22~+167℉) |
| Storage Temperature |
-40~+85ºC (-40~+185℉) |
| Operating Humidity |
95% ( unfreezing) |
