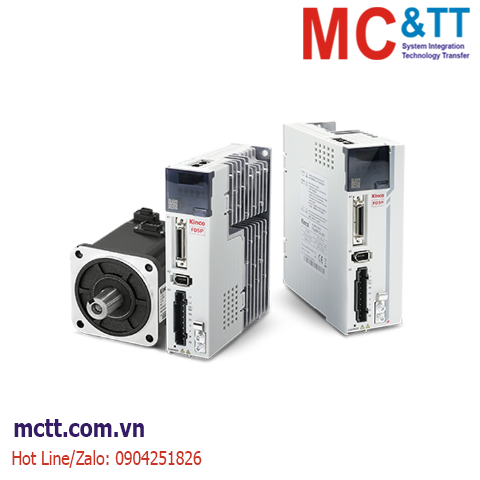

Bộ điều khiển AC Servo Driver 1000W, Pulse, RS485 Kinco FD425P-LF-000

Thương hiệu: Kinco | Tình trạng: Còn hàng

Liên hệ

AC Servo Driver 1000W, Pulse, RS485

Tính năng

Support pulse control;
Supports MODBUS, CANopen, EtherCAT communication control;
Adaptable to high-precision encoder applications;
Support EASY Tune optimization and online self-tuning.
Trap filter for vibration suppression;
S-curve control;
Real-time synchronized control, which can effectively improve production efficiency and increase the precision of multi-axis synchronized control;
IO contains 7-channel digital input, 5-channel digital output and encoder output;
With driver over-voltage & under-voltage protection, over-current protection, overheating protection and short circuit protection, etc.

Thông số kỹ thuật

Series	Model	Power(W)	Supply Voltage	Maximum continuous output current（rms）	Peak Current (A)	Control Mode	Weight（Kg）	External Dimension LWH（mm）
FD5P Series	FD415P-LA-000	400	AC220V	3.2	15	Pulse，RS485	0.881	16015340
	FD415P-CA-000					Pulse，CANopen
	FD415P-EA-000					Pulse，EtherCAT
	FD425P-LA-000	750		4	18	Pulse，RS485	1.5	16015355
	FD425P-CA-000					Pulse，CANopen
	FD425P-EA-000					Pulse，EtherCAT
	FD425P-LF-000	1KW		5	18	Pulse，RS485	1,5	16015355
	FD425P-CF-000					Pulse，CANopen
	FD425P-EF-000					Pulse，EtherCAT

Thông tin đặt hàng

Tài liệu

FD5P serial drive_PDF
