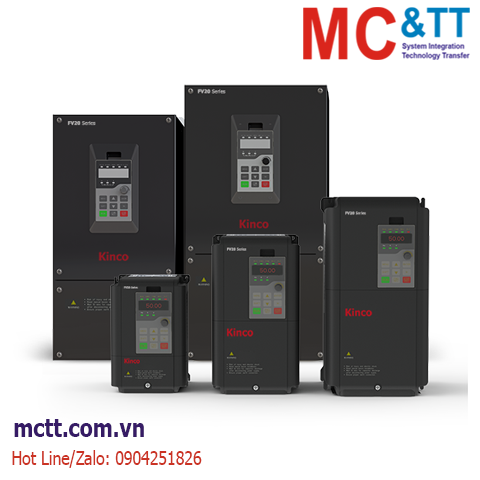

Biến tần 1 pha 220VAC 2.2kW Kinco FV20-2S-0022G

Biến tần 1 pha 220VAC 2.2kW Kinco FV20-2S-0022G

Thương hiệu: Kinco | Tình trạng: Còn hàng

Liên hệ

VFD Single-phase 220VAC, 50/60Hz, 2.2kW

THÔNG TIN SẢN PHẨM

Biến tần 1 pha 220VAC 2.2kW Kinco FV20-2S-0022G

Tính năng

Built-in EMC filter, optimize the electrical environment of EMC field equipment.
Low speed high torque, small torque ripple, automatic current limit.
Optimized structural design, small size, 45kw and below built-in brake unit.
Strict reliability and long life design, support background monitoring software

Thông số kỹ thuật

Model	Power capacity (kVA)	Input current (A)	Output current (A)	Suited motor (kW)
Single-phase 220VAC, 50/60Hz
FV20-2S-0004G	1	5.3	2.5	0.4
FV20-2S-0007G	1.5	8.2	4	0.75
FV20-2S-0015G	3	14	7.5	1.5
FV20-2S-0022G	4	23	10	2.2
Three-phase 380VAC, 50/60Hz
FV20-4T-0007G/0015L	1.5	3.4	2.3	0.75
FV20-4T-0015G/0022L	3	5	3.7	1.5
FV20-4T-0022G/0037L	4	5.8	5.5	2.2
FV20-4T-0037G/0055L	5.9	10.5	8.8	3.7
FV20-4T-0055G/0075L	8.5	14.5	13	5.5
FV20-4T-0075G/0110L	11	20.5	17	7.5
FV20-4T-0110G/0150L	17	26	25	11
FV20-4T-0150G/0185L	21	35	32	15
FV20-4T-0185G/0220L	24	38.5	37	18.5
FV20-4T-0220G/0300L	30	46.5	45	22
FV20-4T-0300G/0370L	40	62	60	30
FV20-4T-0370G/0450L	50	76	75	37
FV20-4T-0450G/0550L	60	92	90	45
FV20-4T-0550G/0750L	72	113	110	55
FV20-4T-0750G/0900L	100	157	152	75
FV20-4T-0900G/1100L	116	180	176	90
FV20-4T-1100G/1320L	138	260	210	110
FV20-4T-1320G/1600L	167	232	252	132
FV20-4T-1600G/1850L	200	282	304	160
FV20-4T-1850G/2000L	230	326	350	185
FV20-4T-2000G/2200L	250	352	380	200
FV20-4T-2200G/2500L	280	385	426	220
FV20-4T-2500G/2800L	320	437	470	250
FV20-4T-2800G/3150L	445	491	520	280
FV20-4T-3150G/3550L	500	580	600	315
FV20-4T-3550G/4000L	565	624	665	355
FV20-4T-4000G/4500L	630	670	690	400
FV20-4T-6000G	990	1035	1050	600
FV20-4T-8000G	1250	1300	1350	800
FV20-4T-10000G	1500	1650	1725	1000

Thông tin đặt hàng

Tài liệu

Kinco VFD product catalog

FV20 englishcatalog

FV20 UserManual
