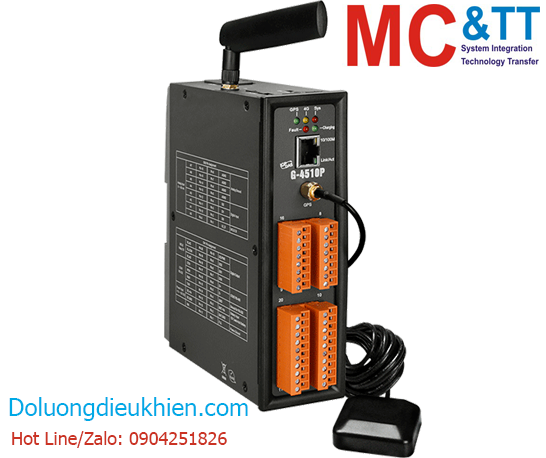

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ lập trình nhúng MiniOS7 PAC + LTE (4G) + GPS ICP DAS G-4510P CR
Features
Introduction
The G-4510 series are M2M (Machine to Machine) Power Saving PAC with a solar charger. It can be used in hydrologic monitoring or mudslide monitoring system. G-4510 can be used for wireless data transmission and other functions through its optional 4G / NB communication module. With optional GPS model , the G-4510 can also be a GPS tracking system for vehicle management or maritime system. The features of G-4510 series: Solar charger, Ethernet interface, optional GPS module, optional 4G/NB communication module, 3 digital inputs, 3 digital outputs, 8 analog inputs, 1 relay output.
Specification
| CPU Module | |
|---|---|
| CPU | 80 MHz internal microprocessor |
| EEPROM | 16 KB, retention > 40 years. 1,000,000 erase/write cycles |
| Flash | Real time clock, watchdog timertimer |
| NVRAM | 31 bytes, battery backup, data valid up to 10 years |
| SRAM | 512K/512K |
| Lead Acid Battery Charger | |
|---|---|
| Battery Voltage | 12V Lead-Acid Battery |
| Charging Voltage | Voltage of Power Input must be over +16V |
| Low Voltage Protect | Low Voltage disconnect = 11.1V / Low Voltage reconnect = 12.6V |
| LED Indicators | |
|---|---|
| Status | 1 x System 1 x 3G 1 x Charging / Fault |
| 2G System | |
|---|---|
| Coding Schemes | CS 1, CS 2,CS 3,CS 4 |
| Data GPRS | GPRS Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps |
| Frequency Band | 850/900/1800/1900 MHz |
| GPRS Multi-slot | GPRS class 10/8; GPRS station class B |
| Power Class | Class 4 (2 W @ 850/900 MHz) Class 1 (1 W @ 1800/1900 MHz) |
| SMS Format | Sending: UCS2/7bits Receiving: UCS2/7bits |
| 3G System | |
|---|---|
| Data Transmission | DC-HSPA+ Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps |
| Frequency Band | WCDMA 850/900/1900/2100 MHz |
| Power Class | Class 3 (24dBm+1/-3dB) for WCDMA |
| SMS Mode | MT, MO, CB, Text and PDU mode |
| 4G System | |
|---|---|
| Data Transmission | LTE Downlink transfer: Max. 100 Mbps; Uplink transfer: Max. 50 Mbps |
| Frequency Band | FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD LTE: B40 |
| Analog Input | |
|---|---|
| Channels | 8 |
| Type | Current |
| Range | 0 ~ 20 mA |
| Resolution | 12 - bit |
| Accuracy | +/- 2 LSB (+/- 0.0097 mA) |
| Sampling Rate | 1 KHz max. (Read one channel). |
| Isolation | 2500Vrms 3000Dc to DC |
| Digital Input | |
|---|---|
| Channels | 3 |
| Type | Source(Dry Type), Common Ground |
| Wet Contact, ON Voltage Level | +3.5 ~ +30 V |
| Wet Contact, OFF Voltage Level | +1 V max. |
| Isolation | Non-isolated |
| Digital Output | |
|---|---|
| Channels | 3 |
| Type | 3 Open Collector (Sink/NPN) |
| Load Voltage | +30 VDC max. |
| Max. Load Current | 100 mA max. |
| Isolation | Non-isolated |
| Relay Output | |
|---|---|
| Channels | 1 |
| Contact Rating | Form C: 2A @ 30 VDC 0.25 A @ 250 VAC |
| Mechanical Endurance | typ. 10^8 operations |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 1 x RS-485 |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| Power | |
|---|---|
| Consumption | Deep Sleep: < 10 mA @ 12VDC; Deep Sleep(With LCD): < 11 mA @ 12VDC; Sleep: < 15 mA@12VDC; Idle: 90 mA @ 24 VDC; Data Link: 150 ~ 400 mA (peak) @ 24 VDC |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 47 x 142 x 168 (W x L x H) |
| Installation | DIN-Rall and Wall mount |
| Environmental | |
|---|---|
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5~90% RH, non-condensing |
Download
Data Sheet
Ordering information
| G-4510P CR | Power Saving PAC with Solar charger and GPS Function (RoHS) |
