GRP-541M-4GC CR: Modem LTE (4G) Dual Sim + GPS + Ethernet + RS-232/48 + CAN Gateway

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

GRP-541M-4GC CR Dual SIM/Ethernet/Serial/CAN to 4G Gateway. Frequency Band for China. (RoHS) (Asia Only)

THÔNG TIN SẢN PHẨM

Features

Support 4G FDD LTE / TDD LTE.
Support 3G WCDMA.
Support 2G GSM.
10/100 Base-TX compatible Ethernet controller.
Support CAN.
GPS : 32 channels with All-In-View tracking.
Support Micro SD card.
Provide 4G Router function.
Provide port mapping function.
Serial Port to 4G Gateway Function.
High reliability in harsh environments.
DIN-Rail mountable.
Support Dual SIM

Introduction

The GRP-541M-4GC provided by ICP DAS is a 4G dual sim card gateway for Ethernet, serial port, and CAN. With GPS function, the GRP-541M-4GC can also be a GPS tracking system. It can be used in M2M application fields to transfer the remote I/O, Modbus data or video of the camera via 4G/3G/2G.

Within the high performance CPU, the GRP-541M-4GC can handle a large of data and are suit for the Harsh Industrial environment. The GRP-541M-4GC have 4G module, Ethernet interface and GPS module.

Application

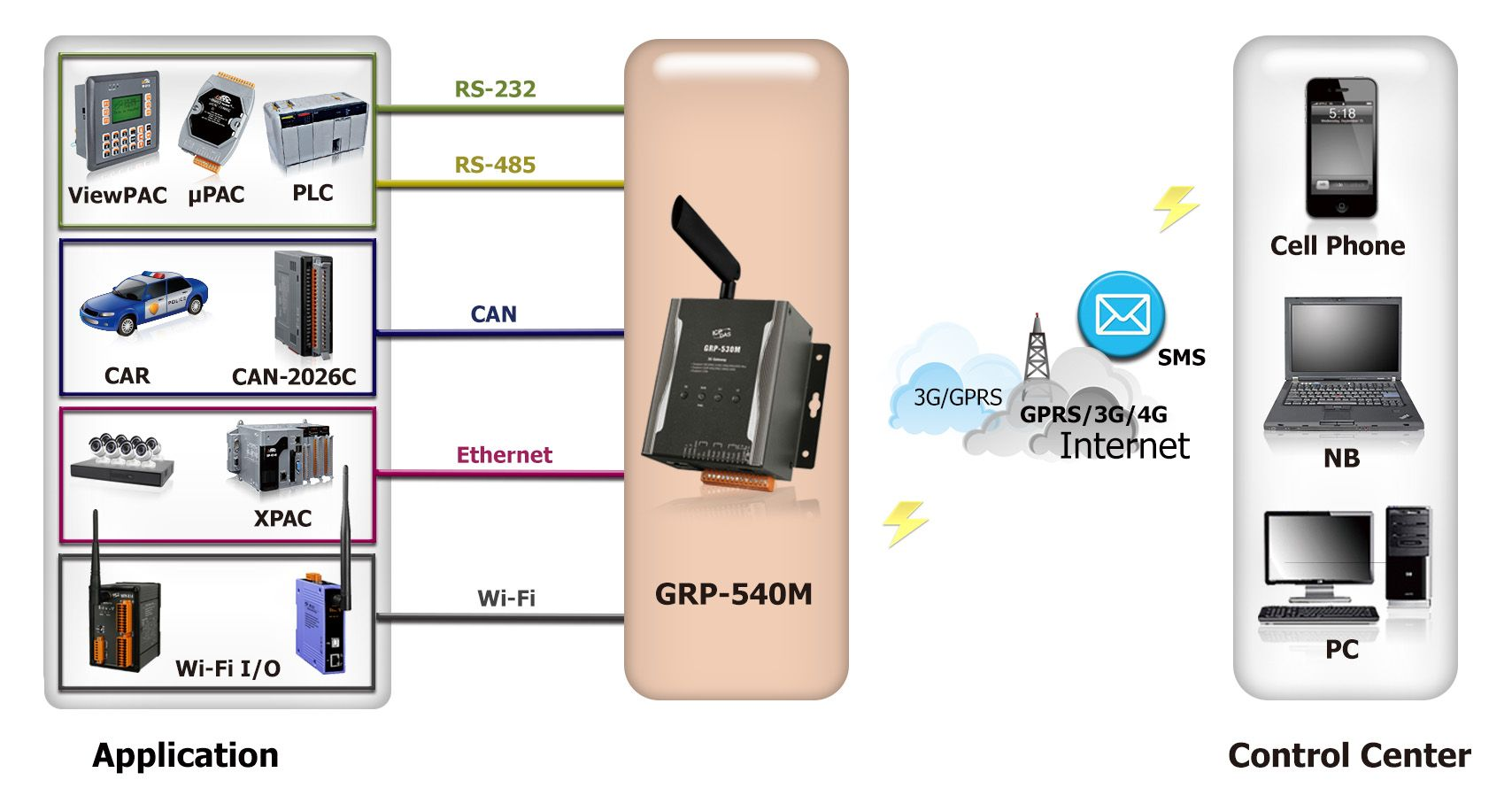

4G Router

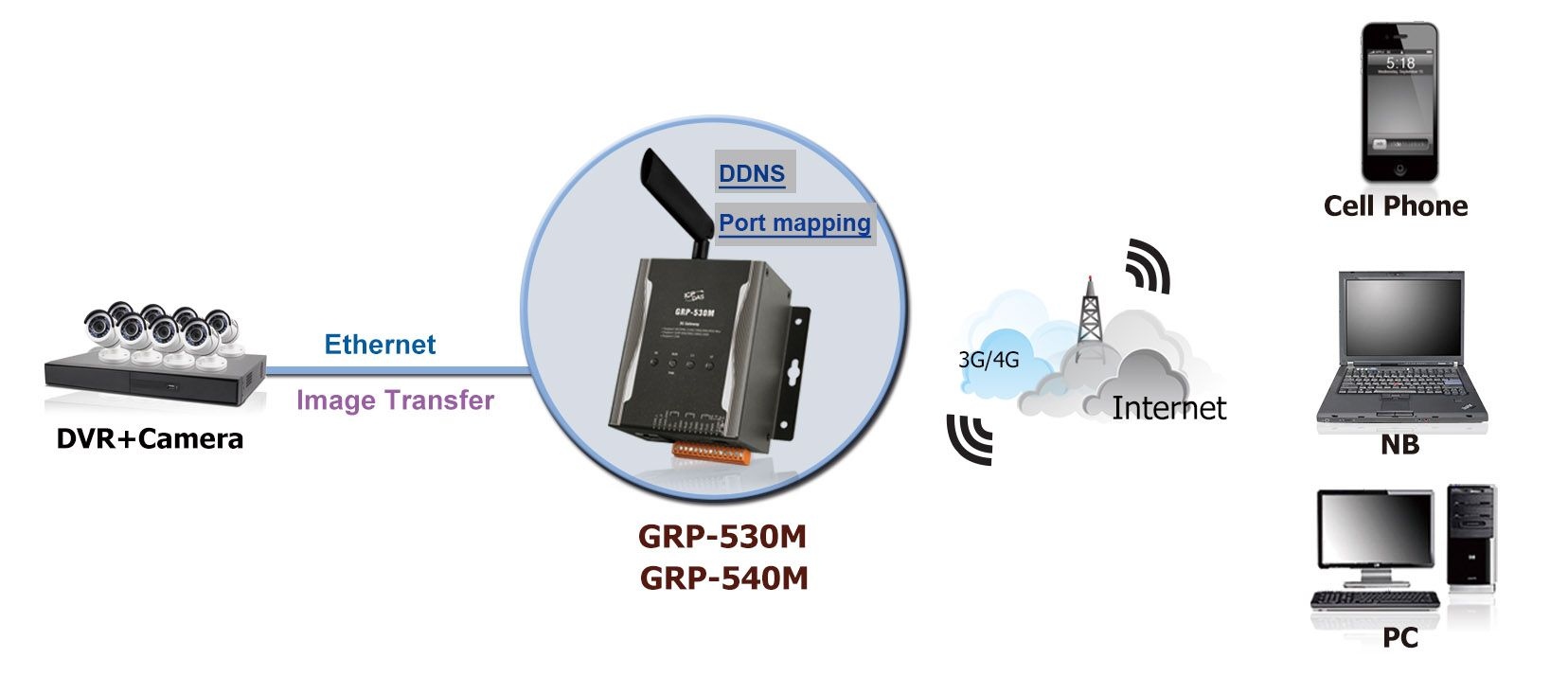

Remote Video Monitor

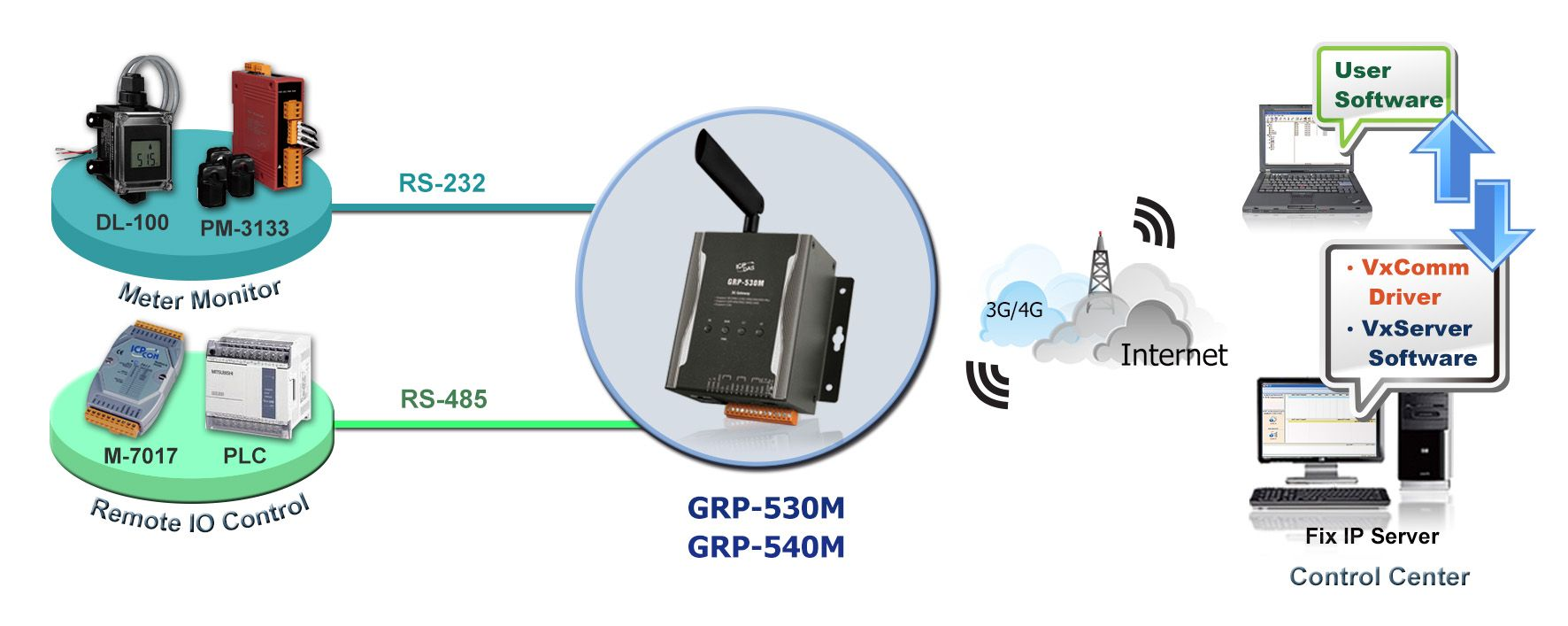

Serial Port to 4G Gateway Application

Specification

CPU Module
CPU	ARM CPU
EEPROM	16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles)
Storage Expansion	SD Card (Max. 32GB SDHC)
Watchdog Timer	Yes

LED Indicators
Status	1 x RUN/PWR 1 x 4G 1 x L1 1 x L2

2G System
Coding Schemes	CS 1, CS 2,CS 3,CS 4
Data GPRS	GPRS Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps
Frequency Band	850/900/1800/1900 MHz
GPRS Multi-slot	GPRS class 12; GPRS station class B
Power Class	Class 4 (2 W @ 850/900 MHz) Class 1 (1 W @ 1800/1900 MHz)

3G System
Data Transmission	DC-HSPA+ Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps
Frequency Band	WCDMA 900/2100 MHz TD-SCDMA 1900/2100 CDMA2000 (BC0) 800
Power Class	Class 3 (250mW @ WCDMA/HSPA)

4G System
Data Transmission	LTE Downlink transfer: Max. 100 Mbps; Uplink transfer: Max. 50 Mbps
Frequency Band	FDD LTE: B1/B3/B8 TDD LTE: B38/B39/B40/B41

GPS
Protocol	NMEA 0183
Support Channels	32

COM Ports
Ports	1 x RS-232 (Console, Debug) 1 x RS-232 1 x RS-485 (3000VDC Isolated)

Ethernet
Ports	1 x RJ-45, 10/100Base-T(X)

CAN
Signal Line	CAN Bus (CAN_H, CAN_L)

Power
Consumption	4.8W ( 200 mA @ 24 VDC)

Mechanical
Casing	Metal
Dimensions (mm)	117 x 126 x 58 (W x L x H)
Installation	DIN-Rail / Screw

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 95% RH, Non-condensing

Download

Data Sheet

Documents

Ordering information

GRP-541M-4GC CR

Dual SIM/Ethernet/Serial/CAN to 4G Gateway. Frequency Band for China. (RoHS) (Asia Only)
