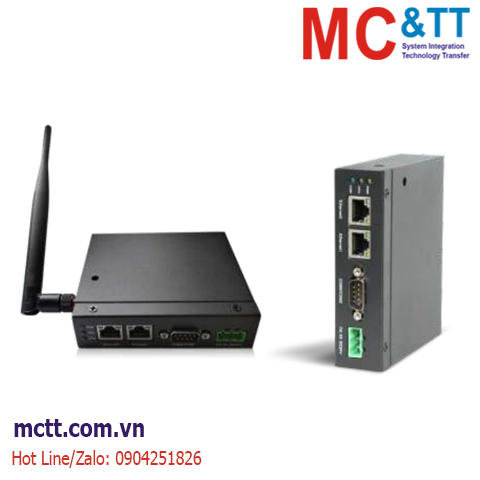

IoT gateway Kinco GW01 (ARM RISC 32Bit, 2 COM, 2 Ethernet)

Chia sẻ

Thương hiệu: Kinco Loại: IoT Gateway

Tình trạng: Còn hàng

Mã sản phẩm: GW01

Green IoT gateway

CAM KẾT CỦA CHÚNG TÔI

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

FREESHIP Miễn phí vận chuyển

HSD: Không thời hạn

Sao chép

IoT gateway Kinco GW01 (ARM RISC 32Bit, 2 COM, 2 Ethernet)

Tính năng

Freescale industrial-grade CPU, 800MHz processor, 128MB memory
Dual-port ethernet + COM, can connect hundreds of mainstream controllers, no need to change the existing architecture
Easy configuration, easy to achieve data mapping, the device data transfer to the cloud
Free choice of wireless or 4G, suitable for different demand
Small size, easy to install (DIN rail installation)

Thông số kỹ thuật

Model	GW01	GW01-4G	GW01-WiFi
Performance specification
CPU	ARM RISC 32Bit 800MHz
Storage	128MB NAND Flash Memory + 128MB DDR3 Memory
RTC	Built-in real time clock
Ethernet	2* 10/100M self-adaption
Printer port	USB Host/ Serial port
WiFi	None	None	2.4GHz WiFi
4G	None	Built-in	None
Program download	USB Slave (Micro USB)/ Ethernet	USB Slave (Micro USB)/ Ethernet	USB Slave (Micro USB)/ Ethernet/ WiFi
Cellular and Wireless	None	LTE-FDD Band 1/3/5/8 LTE-TDD Band 38/39/40/41 UMTS Band 1/8 GSM Band 3/8	IEEE802.11 b/g/n 802.11b:max 17dBm 802.11g:max 17dBm 802.11n:max 17dBm
VPN	Support box remote upload and download and online monitoring, support PLC passthrough program upload and download and online debugging
COM port	COM0:RS232/RS485/RS422, COM2:RS232
Electrical specification
Input power supply	DC10V~DC28V, Built-in isolation power supply
Rated power	1.5W
Allowable loss of power	<3ms
Insulation resistance	Over 50MΩ@500V DC
Hi-pot test	500 VAC 1 minute
Structure specification
PCB	None of spraying
Shell color	Black
Shell material	Metallic
Shape size	111.693.630 mm
Installation	DIN-rail mounting (35mm)
Weight	0.31Kg
Environment specification
Operating temperature	-10～50℃
Operating humidity	10～90% non-condensing
Storage temperature	-20～60℃
Storage humidity	10～90% non-condensing
Shockproof test	10~500Hz, 30m/s², X, Y, Z direction/hour
Cooling method	Natural air cooling
Certification
Panel protection grade	Conforming to IP20
CE certification	CE: EN61000-6-4:2007+A1:2011, EN61000-6-2:2005
Software
Configuration software	Kinco DTools V3.4 and above
