Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ lọc và chia kênh tín hiệu HART ICP DAS HRT-370 CR
Features
Introduction
HRT-370 is a HART signal filter specially designed to solve the issue that analog signal gets interfered while additional HART signal adding to communication process. When connecting HRT-370 to a HART instrument, it splits the input HART signal to two output channels, one keeps the original HART signal and another filter the HART signal out to output pure analog signal. Therefore, users can make both HART and analog current data collection and processing easier and more precise by applying HRT-370.

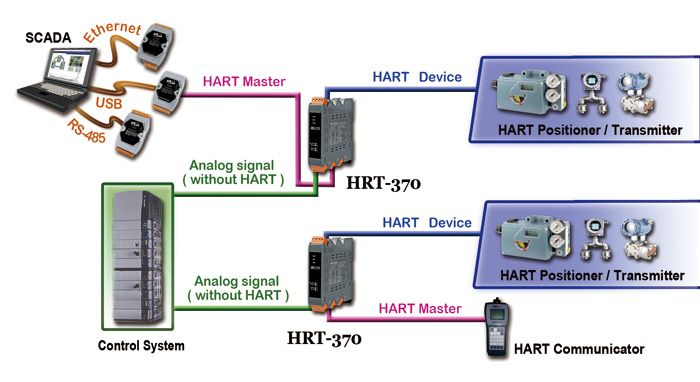

Applications
Specifications
| LED Indicators | |
|---|---|
| Status | PWR: Module power status HART: HART connection status AO: AO connection status |
| Analog Output | |
|---|---|
| Zero Drift | ± 0.1% FSR @25 °C ± 0.5% FSR @-30/+80°C |
| Span Drift | ± 0.1% FSR @25 °C ± 0.5% FSR @-30/+80°C |
| Response Time | 40ms @ 250 Ω |
| Voltage Output Capability | External +30V @ 800Ω (Sink) |
| Isolation | 2500VDC |
| HART | |
|---|---|
| Device | 2-wired or 4-wired HART devices (Point to Point) |
| Isolation | 2500 VDC |
| Input Impedance | 250Ω±5% (2W) |
| Loop Power | Yes (module provides +30V output) |
| Auxiliary Supply | 24V @ 20mA |
| Power | |
|---|---|
| Reverse Polarity Protection | Power reverse polarity protection, Over-voltage brown-out protection |
| Input Range | Unregulated +10 ~ +30 VDC |
| Consumption | Maximum: (20mA) => 0.05mA @ 30VDC, 1.5W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 25 x 116 x 120 |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 5% ~ 95% RH, Non-condensing |
Download
Ordering Information
| HRT-370 CR | HART Signal Filter (RoHS) |
