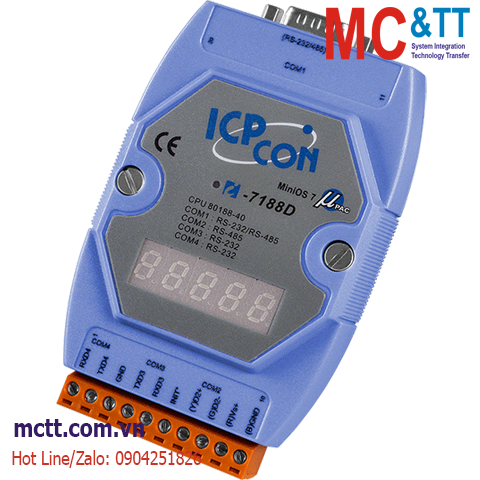

Bộ lập trình nhúng ROM-DOS PAC CPU 80188-40 ICP DAS I-7188D/DOS/512 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Serial PAC with 80188-40 CPU, ROM-DOS, 512KB Flash, 256KB SRAM and 7-Segment LED Display (Blue Cover)

THÔNG TIN SẢN PHẨM

Features

• 80188, 40 MHz CPU
• Built-in ROM-DOS and ROM-Disk
• Various Storage Media
‣ 512 KB Flash
‣ 2 KB EEPROM
• Various Communication Interfaces
‣ RS-232
‣ RS-485
• Programmable LED Indicator
• Build-in Watchdog Timer

Introduction

The I-7188D/DOS/512 is for industry applications and can be used to replace PC or PLC devices in harsh environments. The I-7188D/DOS/512 controller is designed for palm-size embedded systems that require high reliability, PC-compatibility, and compactness at a reasonable price.

The controllers can be integrated into an OEM product as a processor core component. By building your product around I-7188D/DOS/512 controller, you reduce the time from design to market introduction, cut development costs, minimize technical risks, and deliver a more reliable product. Depending on the type of embedded firmware programs that are being developed, the I-7188D/DOS/512 can be used as a single versatile controller.

Application

Specifications

Software
OS	ROM-DOS
Development	C Language

CPU Module
CPU	80188, 40MHz or compatible
EEPROM	2 KB
Flash	512 KB
NVRAM	31 Bytes
SRAM	256 KB
Real Time Clock	Provide seconds, minutes, hours, day of week, month, year
Watchdog Timer	Yes

Display
Type	5 x Digit 7 Segment LED Display

LED Indicators
Status	1 x System

COM Ports
Ports	2 x RS-232, 1 x RS-485, 1 x RS-232/RS-485
Baud Rate	115200 bps Max.

Power
Input Range	+10 ~ 30 VDC
Consumption	3.0 W

Mechanical
Dimensions (mm)	72 x 119 x 33 (W x H x D)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +80 °C
Humidity	5 ~ 90 %, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7188D/DOS/512 CR

Serial PAC with 80188-40 CPU, ROM-DOS, 512KB Flash, 256KB SRAM and 7-Segment LED Display (Blue Cover) (RoHS)
