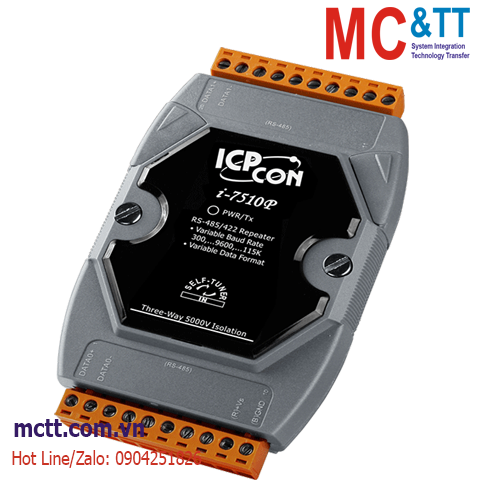

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ lặp và cách ly RS-485 ICP DAS I-7510P-G CR
Feature
• Automatic RS-485 Direction Control
• Transmission Speed of up to 115200 bps
• ESD Protection for RS-485 Data Line
• 3-way 5000 VDC (IEC 60664-1 section 6.1.2.2.1) Isolation Protection
Introduction
The I-7510P provides 3-way optical isolation between one piece of RS-485 power side equipment and the rest of the system. It can also be used as a repeater to extend the transmission of an existing network. Additionally, an RS-485 system can be expanded beyond the 256 node limitation imposed by the standard. It can also be used to convert a 2-wire RS-485 signal, and vice versa.
The I-7510P is exactly the same as the I-7510, except for the isolation side. The isolation side of the I-7510 is located in the input interface circuit, but the isolation side of the I-7510P is located in the input and output interface circuit. In other words the I-7510P is 3-way isolation repeater module..
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 3-way 5 kV Isolated |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 300 ~ 115200 bps |
| Power | |
|---|---|
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 2.2 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 72 x 35 x 122 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| I-7510P-G CR | Three Way 5 kV Isolated RS-485 Repeater (Gray Cover) (RoHS) |
