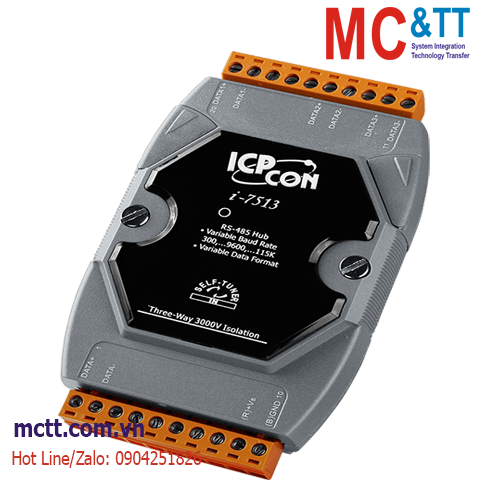

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ chia HUB 1 cổng RS-485 Master sang 3 cổng RS-485 Slave ICP DAS I-7513 CR
Feature
• RS-485 Active Star Wiring Applications
• Automatic RS-485 Direction Control
• 3000 VDC Three Way Isolation Protection
• ESD Protection for the RS-485 Data Line
Introduction
The I-7513 is a 3-ch RS-485 Active Star Wiring Hub. The unit has three independent RS-485 output channels, each with their own driver, which can transmit signals across 4,000 ft (1200 m) of cable on each channel.
The I-7513 includes both Hub and Repeater functions, so each output channel can be connected to another hub.
The isolation site of the I-7513 is located in the input and output interface circuit. In other words, the I-7513 is a three-way isolation module.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation | |
|---|---|
| Three-way Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 Input (Master) 3 x RS-485 Output (Slave) |
| Baud Rate | 300 ~ 115200 bps |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC (Non-isolated) |
| Consumption | 2.16 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 72 x 35 x 122 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| I-7513-G CR | Three Way Isolated RS-485 Active Star Wiring Hub (Gray Cover) (RoHS) |
