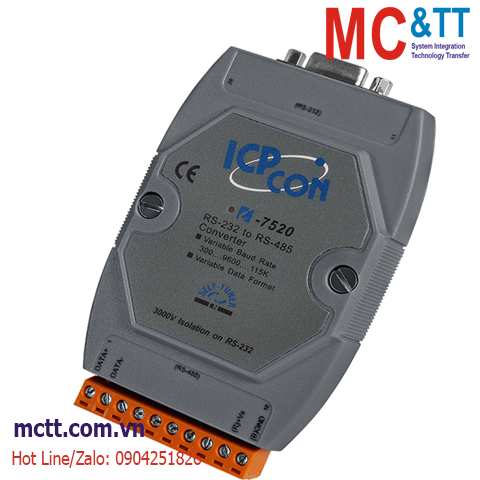

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ chuyển đổi RS-232 sang RS-485 ICP DAS I-7520-G CR
Feature
Introduction
Most industrial computer systems provide standard RS-232 serial ports. Though widely accepted, RS-232 has limited transmission speed, range, and networking capabilities. The RS-485 standards overcome these limitations by using differential voltage lines for data and control signals, which transparently converts RS-232 signals into isolated RS-485 signal with no need to change any hardware or software. The I-7520 lets you easily build an industrial grade, long-distance communication system using standard PC hardware.
The design of the isolation between the I-7520/A and the I-7520R/AR is different. If the user wants to supply power from the PLC/PC, the I-7520R/AR should be used, otherwise the isolation will be broken.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC on RS-232 side |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 Input (Master) 1 x RS-485 Output (Slave) |
| Baud Rate | 300 ~ 115200 bps |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC (Non-isolated) |
| Consumption | 1.2 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 72 x 35 x 118 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| I-7520-G CR | Isolated RS-232 to RS-485 Converter (Gray Cover) (RoHS) |
