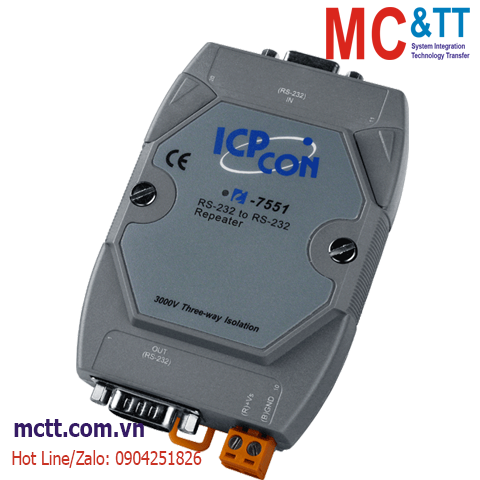

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ lặp và cách ly RS-232 ICP DAS I-7551-G CR
Feature
• 3000 VDC 3-way Isolation Protection
• ESD Protection
• Baud Rate, 300 ~ 115200 bps
• DIN-Rail
Introduction
The I-7551 provides a complete full-duplex (including control signal) electrical isolation channel between two RS-232 devices. This isolation is an important consideration if a system uses different power sources, has noisy signals, or must operate at different ground potentials.
The CTS/RTS pins of the I-7551 module can be reconfigured as DSR/DTR to meet requirements on different applications.
The I-7551 incorporates two DC-to-DC isolator, the isolation site of the I-7551 is located in the input and output interface circuit. In other words, the I-7551 is 3-way isolation RS-232 to RS-232 repeater.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation | |
|---|---|
| Three-way Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 Input 1 x RS-232 Output |
| Baud Rate | 300 ~ 115200 bps |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC (Non-isolated) |
| Consumption | 1.2 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 72 x 35 x 118 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| I-7551-G CR | Isolated RS-232 to RS-232 Repeater (Gray Cover) (RoHS) |
