Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ chuyển đổi USB sang RS-232 ICP DAS I-7560U CR
Feature
Introduction

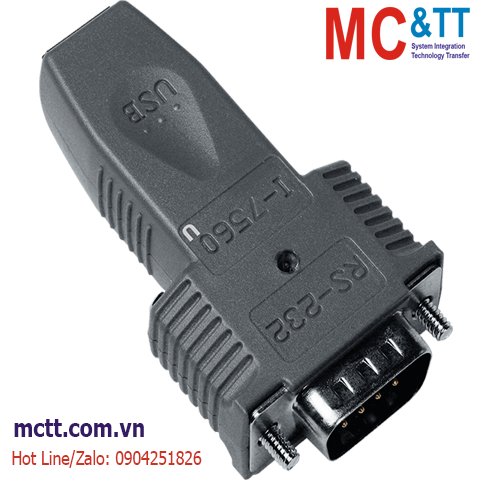

The I-7560U provides a Windows serial COM port via it's USB connection and is compatible with new and legacy RS-232 devices. USB Plug-and-Play allows easy serial port expansion and requires no IRQ, DMA, or I/O port settings manually.
The I-7560U features a full set of RS-232 modem data and control signals (TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI and GND) on it's PC compatible DB-9 male connector. It also features a high-speed 115200 bps transmission rate.
The I-7560U is powered from the USB bus and no additional power supply is needed.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 |
| Baud Rate | 300 ~ 921.6 kbps |
| USB | |
|---|---|
| Specification | Fully Compliant with the USB 1.1/2.0/3.0 |
| Connector | Type B |
| Power | |
|---|---|
| Input Range | +5 VDC from USB |
| Consumption | 0.3 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 x 15 x 60 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Download
Ordering Information
| I-7560U CR | High-speed USB to RS-232 Converter with CA-USB18 Cable (RoHS) |
