Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ chuyển đổi USB sang RS-232/422/485 ICP DAS I-7561-G CR
Feature
Introduction

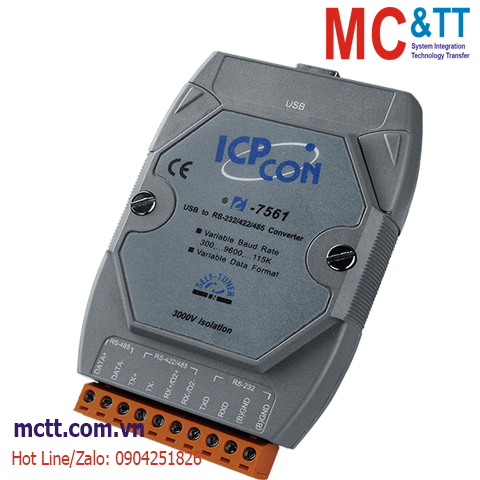

The I-7561 is a cost-effective module for transferring serial data via USB. It allows you to connect your serial devices to systems that use a USB interface. Connecting the I-7561 to a PC, you get one RS-232/422/485 port. Like the I-7520A, the I-7561 contains "Self-Tuner" chip auto-tunes the Baud Rate and data format to the RS-485 network.The I-7561 module derives its power from the USB port and doesn't need any power adapter.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232/422/485 |
| Baud Rate | 300 ~ 115200 bps |
| USB | |
|---|---|
| Specification | Fully Compliant with the USB 1.1/2.0/3.0 |
| Connector | Type B |
| Power | |
|---|---|
| Input Range | +5 VDC from USB |
| Consumption | 0.5 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 72 x 115 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Download
Ordering Information
| I-7561-G CR | USB to Isolated RS-232/422/485 Converter with CA-USB18 Cable (Gray Cover) (RoHS) |
