Module 1 cổng CANopen Slave ICP DAS I-8123W-CPS-G CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

1 Port high performance CANopen Slave Module

THÔNG TIN SẢN PHẨM

Features

One CANopen slave communication port
Standard CANopen specification DS-301 v4.02
Support node id 1~127
Programmable bauds: 10k, 20k, 50k, 125k, 250k 500k, 800k, and 1M bps
Support both Node Guarding Protocol and Heartbeat Consumer Protocol
Provide event trigger function for EMCY event, Node Guarding event and Heartbeat event
Provide Event-trigged, remote-requested, cyclic and acyclic SYNC of PDO mode
The PDO communication supports single byte output so that users can just modify the value of one byte without changing the others
Allow dynamic PDO mapping
The SDO communication support segment protocol
Programmable slave node ID for the CANopen slave function
Provide eVC++, VB.Net and C# demos
Support WP-8xx1, VP-25W1 and XP-8xx1-CE6 PACs
256 records CANopen message receive buffer size
2500 Vrms photo-isolation protection on CAN side
3 indication LEDs (PWR, Rx/Tx, ERR LEDs)

Software Utility Features

Utility tool for downloading user-defined firmware and updating default firmware
Development Toolkit for eVC++, VS 2005 (VB.Net, C#.Net) on WinPAC
Development Toolkit for C/C++ on MiniOS7
I-8123W-CPS don't support any ISaGRAF series main control unit

Introduction

The CAN (Controller Area Network) is a serial communication bus especially suited to interconnect smart devices to build smart systems or sub-system. It efficiently supports distributed real-time control with a very high level of security. In CAN networks, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted. As standalone CAN controller, I-8123W-CPS can represents an economic solution of CANopen application and be a CANopen slave device in the CAN bus on the CANopen network. It follows CiA standard specific DS-301 v4.02 and several communication service functions to communicate with master devices. It has one independent CAN communication port with 5-pin screw terminal connector, and has the ability to cover a wide range of CANopen applications. Besides,I-8123W-CPS uses the new Phillips SJA1000T and transceiver 82C250, which provide both CAN 2.0A and 2.0B specific, re-transmission function, bus arbitration and error detection with auto correction.

It can be installed in WinPAC, ViewPAC and XPAC now. It is popularly applied in the industrial automation, building automation, vehicle, maritime, embedded control network and etc. In order to expand the CANopen functions of ICP DAS products, I-8123W-CPS module is developed for this purpose.

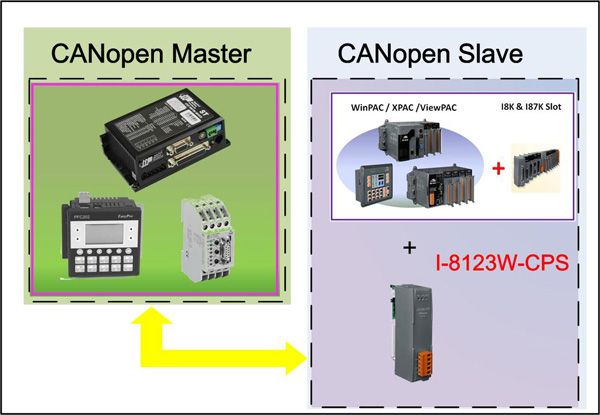

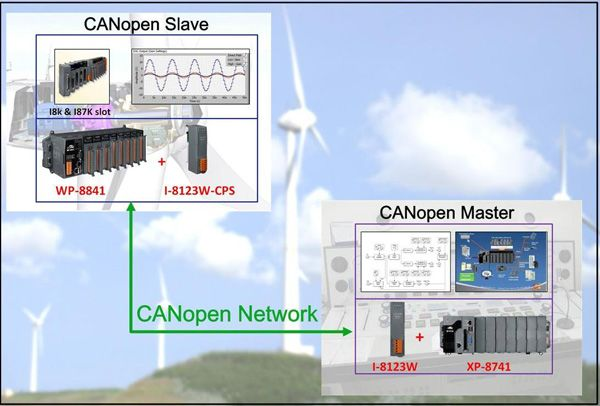

Application

Specification

Software
Driver	WinPAC, ViewPAC, XPAC-CE6 (The XPAC series PAC only support one I-8123W-CPS)
Library	eVC++4.0, VC++, VB.net, C#.net

CPU Module
CPU	80186, 80 MHz or compatible
EEPROM	16 KB
Flash	512 KB
SRAM	512 KB
Watchdog Timer	Hardware watchdog

LED Indicators
Status	PWR LED, Rx/Tx LED, ERR LED

CANopen
Controller	NXP SJA1000T with 16 MHz clock
Transceiver	NXP 82C250
Ports	1
Baud Rate	10 k ~ 1 M
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor	Built-in 120Ω
Porotocol	CiA 301 v4.02
NMT	Slave

Power
Consumption	2W

Mechanical
Dimensions (mm)	31 x 115 x 91 (W x L x H)

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +80 °C
Humidity	5 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

I-8123W-CPS-G CR

1 Port high performance CANopen Slave Module (Parallel Bus Type) (RoHS)
