Module 1 cổng DeviceNet Master ICP DAS I-87124-G CR

Module 1 cổng DeviceNet Master ICP DAS I-87124-G CR

Features

• DeviceNet Version: Volume I & II, Release 2.0
• Programmable master MAC ID
• Programmable transfer-rate 125K, 250K, 500K
• Slave Node : 63 nodes max
• Support Group 2 and UCMM functions
• I/O Length: max 512 input bytes and 512 output bytes pre slave
• Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
• Support auto-detect Group 2 and UCMM device
• Support auto-scan slave device function
• Support on-line add device into and remove device from network
• Support auto-reconnect when the connection is broken

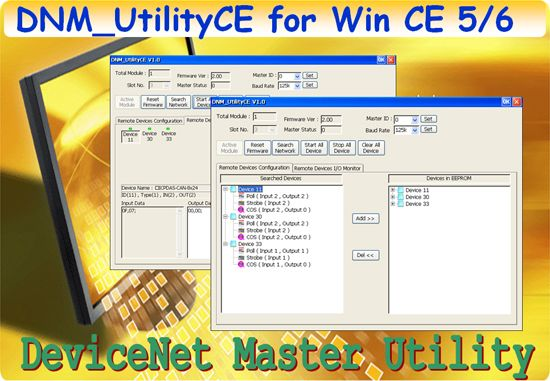

Software Utility Features

Diagnosis

This utility supports to search all devices and specific devices in the network. These functions help the users to configure the connection of the slave devices. Anymore, the software also can diagnose the remote slave devices when building the DeviceNet network.

Configuration

This software supports the users to configure the I/O connection of the devices by searching devices or manual setting. After configuring the I/O connection, the information would be saved into the EEPROM of the PISO-DNM100. The users can export the data from the EEPROM easily. Correspondingly, the users can import the data into the EEPROM.

Remote I/O access

The software utility can easily to access the I/O data of all the slave devices. The users can monitor the input data of the specific slave device and change the output data to the remote slave device with this utility.

Introduction

The CAN (Controller Area Network) is a serial communication protocol, and efficiently supports distributed real-time control with a very high level of security. It is an especially suit for networking "intelligent" devices as well as sensors and actuators within a system or sub-system. In CAN network, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted. As standalone CAN controller, I-87124 can represent an economic solution of DeviceNet application and be a DeviceNet master device in the CAN bus on the DeviceNet network. It is a "Predefined Master connection Set", and supports Group 2 only Server functions to communication with slave devices. It has a independent CAN bus communication port with 5-pin screw terminal connector, and has the ability to cover a wide range of DeviceNet applications. Besides, I-87124 uses the CAN controller Phillips SJA1000T and transceiver 82C250, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in WinPAC or ViewPAC series PAC.It is popularly applied in the industrial automation, building automation,vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, I-87124 module is developed for this purpose.

Applications

• CAN bus communication application
• Industry automation
• Industrial Machinery
• Building Automation
• Food & Beverage
• Semiconductor Fabrication
• Control system
