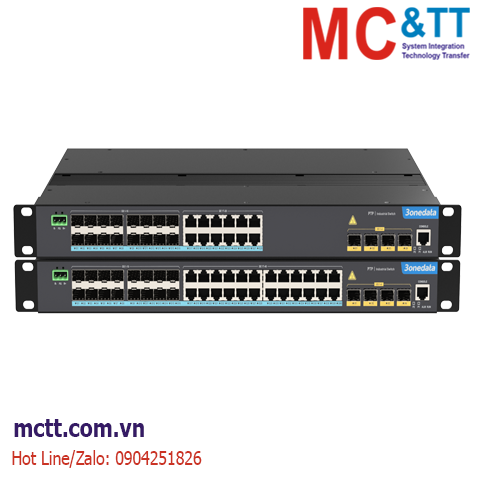

19-inch 1U Rack Mounting 44-Port Gigabit/ 10Gigabit Layer 3 PTP Industrial Ethernet Switch
Switch công nghiệp TSN quản lý layer 3 4 cổng 10Gb SFP+ + 12 cổng Gigabit Ethernet + 16 cổng Gigabit SFP 3Onedata ICS5400PTP-12GT16GS4XS-2HV
ICS5400PTP series are 44-port Gigabit/10Gigabit layer 3 industrial Ethernet switches. Provide Gigabit copper port, Gigabit SFP slot, 10Gigabit SFP+ slot, which can negotiate the port rate and duplex mode with the device at the opposite end through self-negotiation. Support 85~264VAC power supply input, and adopt rack installation mode, which can meet the requirements of different application sites.
The network management system supports a variety of network protocols and industry standards, such as IPv6, PTP, OSPF, PIM, VRRP, ISIS, NAT, Ring, MRP, STP/RSTP/MSTP, ERPS, VLAN, IGMP/MLD, IGMP/MLD Snooping, DHCP Server/Relay, LLDP, LACP, port mirroring. It possesses complete management functions and supports SNMP centralized management, port statistics, storm suppression, network diagnosis, online upgrade, etc. CLI, HTTP, HTTPS, TELNET, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply or port has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in railway transportation, smart mining, smart city, new energy, smart grid, intelligent manufacturing smart medical care, petroleum and petrochemical industry and other industrial fields.
Tính năng
Thông số kỹ thuật
Standard & Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3ae for 10GBase-X IEEE 802.1AS, IEEE1588 for PTP IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol ITU-T G.8032 for ERPS IEEE 802.1Q for VLAN IEEE 802.1AB for LLDP IEEE 802.3ad for LACP |
PTP (Precise Time Protocol) |
IEEE1588, IEEE802.1AS |
Management |
SNMP v1/v2c/v3 centralized managed equipment, Port Mirroring, LLDP, DHCP Server, DHCP Relay, port speed limit, port isolation, port statistics, file management, online upgrade, log information, Syslog server |
Security |
User privilege classification, SSH/HTTPS protocol authorization, link flap protection, port loop detection, IPDT, IPv6DT, Smart-Link, NAT, port alarm and power alarm. |
Switch Function |
802.1Q VLAN, MAC, static aggregation, LACP, ARP, storm suppression |
Unicast/Multicast |
IGMP-Snooping, MLD-Snooping, IGMP, MLD, PIM-SM, PIM-DM, IPv6-PIM-SM, IPv6-PIM-DM |
Redundancy Technology |
Ring, MRP, STP/RSTP/MSTP, ERPS |
Routing Technique |
RIP, RIPng, OSPF, OSPFv3, ISIS, VRRP, IPv6 VRRP, BGP |
Troubleshooting |
Ping, Traceroute, Network Cable Diagnosis, DDMI |
Time Management |
NTP client/server, time zone configuration |
Interface |
Gigabit copper port: 10/100/1000Base-T(X) self-adaption or forced mode, RJ45, Automatic Flow Control, Full/Half Duplex Mode self-adaption, MDI/MDI-X Autotunning Gigabit SFP slot : 100/1000Base-X self-adaption or forced mode, SFP slot 10Gigabit SFP+ slot: 1G/2.5G/10G Base-X self-adaption or forced mode, SFP+ slot Console port: CLI command line management port(RS-232), RJ45 Relay: support 1 relay alarm information output, using 3-pin 5.08mm pitch terminal blocks, and the current load capacity is 1A@30VDC or 0.3A@125VAC |
Indicator |
Power indicator, running indicator, alarm indicator, interface indicator |
Switch Property |
Transmission mode: store and forward MAC address: 32K Buffer: 32Mbit Backplane bandwidth: 160G Switch delay: <10μs |
Power Supply |
110VAC/220VAC(85~264VAC) power input, support dual power redundancy, use AC socket with switch. |
Power Consumption |
ICS5400PTP-24GT16GS4XS-2HV: No-load: 19.5W Full-load: 47.3W |
Working Environment |
Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%~95% (no condensation) |
Physical Characteristic |
Housing: IP40 protection, metal Installation: 19-inch 1U rack mounting Dimension (W x H x D): 441.6mm×44.45mm×290mm (lugs are not included) |
Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 Contact discharge: ±6kV Air discharge: ±8kV IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 Power supply: ±2kV Copper port: ±2kV IEC 61000-4-5 (Surge), Level 3 Power supply: differential mode±1kV, common mode±2kV Copper port: ±2kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
Authentication |
CE, FCC, RoHS, IPv6 Ready LoGo |
Warranty |
3 years |
Download
Thông tin đặt hàng
Available Models |
Gigabit Copper Port |
Gigabit SFP |
10Gigabit SFP+ |
Power Supply |
ICS5400PTP-12GT16GS4XS-2HV |
12 |
16 |
4 |
85~264VAC, dual power supply redundancy |
ICS5400PTP-24GT16GS4XS-2HV |
24 |
16 |
4 |
