Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule nhúng switch công nghiệp quản lý 8 cổng Ethernet 3Onedata IEM608
IEM608 module is an embedded module designed to allow client’s industrial equipment to be provided with managed switch function. Adopting the modern modular design concept, which is simple and high-efficiency, this module makes the industrial equipment designers concentrate on their industrial design instead of figuring out complex network product design. It is widely used in such areas as electric power, water conservation, mining, chemical manufacturing, car, road monitoring, national defense and military.
Features
◎Support 8 Ethernet ports, all support 10Base-T/100Base-TX/100Base-FX (optical and electrical ports optional)
◎Support self-developed SW-Ring redundant network patented technology, many looped networks, failover time <20ms
◎Support Layer 2 protocols of Ethernet switch such as VLAN, QoS, Port Trunking, Port Mirroring, IGMP Static Multicast
◎Support rate limiting and broadcast storm control
◎Support Web, CLI, Telnet management
◎Support port data frame statistics
◎Support abnormal alarm
◎Support one-key configuration
◎Energy saving design, power consumption < 4W
◎Working temperature -40～85℃
◎Compact and integrated
Specification
Technology
Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ad, IEEE802.1p, IEEE802.1Q, IEEE802.1X
Interface
Ethernet port:
8 Ethernet ports, available to be set as electrical or optical port as required
Redundant ring network port:
8 Ethernet ports, available to be set as redundant ring network ports
Web setting port:
All Ethernet ports come with Web setting, and support one LVTTL level serial port for serial Web setting
Alarm port:
Two LVTTL level monitor signal inputs provided for collecting alarm message of port and power abnormal
One LVTTL level alarm message output, support local alarm and remote alarm of power, port link and ring network status
System Parameters
Support 100 devices in a ring
Line fault recovery time < 20ms (in full load)
Forward speed: 148810pps
Max filter speed: 148810pps
Transmit mode: store and forward
Switched bandwidth: 2.0G
MAC table size: 2K
Support port-based VLAN protocol
Support 16 VLAN IDs, as many as 4906 VLANs can be built within the whole network
Networking
Single Ring, Tangent Ring, Star, Chain, Coupling Ring, Dual Homing
Failover time < 20ms
Power Supply
Input voltage: 3.3VDC (±5%)
Power Consumption: <4W
Physical Characteristics
Size (W*H*D): 72mm×54mm×9.5mm
Working Environment
Working temperature: -40-85℃
Storage temperature: -40-85℃
Humidity: 5%~95% (no condensation)
Warranty: 5 years

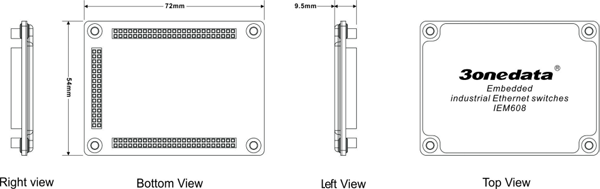

Dimension
Download
Ordering Information
| IEM608: |
| 8 Ports 100M Embedded Managed Industrial Ethernet Switch Core Module |
