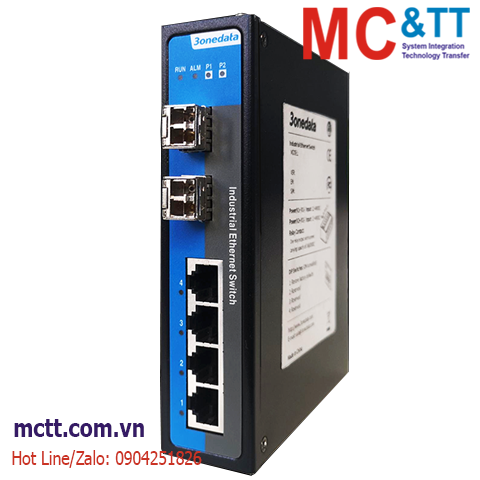

Miễn phí vận chuyển với đơn hàng từ 10.000.000đSwitch công nghiệp quản lý 4 cổng Gigabit Ethernet + 2 cổng 2.5G SFP 3Onedata IES6000-4GT2HS-2P48
IES6000-4GT2HS is a 6-port full Gigabit Layer 2 managed industrial Ethernet switch. This product provides 4 Gigabit electrical ports and 2 2.5G SFP slots, and adopts DIN rail installation to meet the needs of different application sites.
The network management system supports a variety of network protocols and industry standards, such as Ring, STP/RSTP/MSTP, ERPS, DHCP, VLAN, QoS, IGMP Snooping, LLDP, port aggregation, port mirroring, etc. It has complete management functions, supports port configuration, access control, network diagnosis, online upgrade, etc. It supports CLI, WEB, Telnet, SSH, SNMP and other access methods. The network management system has a friendly interface design, simple and convenient operation, and can bring you a good user experience.
The product provides two independent power supply circuits to ensure that the device can still operate normally when one power supply fails. The design of the dip switch can restore the device to factory settings. When a link failure occurs in the DC power supply or port, the ALM alarm light will be high and the alarm device connected to the relay will also sound an alarm, so that the fault can be quickly checked on site.
The hardware adopts a fanless, low-power, and wide-temperature design. It has passed rigorous testing in accordance with industry standards and can adapt to industrial field environments with strict EMC requirements. It can be widely used in AP coverage, rail transit, smart cities, safe cities, new energy, smart grids, aerospace, intelligent manufacturing, military industry and other industrial fields.
Tính năng
Thông số kỹ thuật
|
Standards and protocols |
10Base-T, compliant with IEEE 802.3 100Base-TX, compliant with IEEE 802.3u 1000Base-T, compliant with IEEE 802.3ab 1000Base-X, compliant with IEEE 802.3z Flow control, compliant with IEEE 802.3x Spanning tree, compliant with IEEE 802.1D Rapid spanning tree, compliant with IEEE 802.1w Multiple spanning trees, compliant with IEEE 802.1s ERPS, compliant with ITU-T G.8032 VLAN, compliant with IEEE 802.1Q CoS, compliant with IEEE 802.1p LLDP, compliant with IEEE 802.1AB LACP, compliant with IEEE 802.3ad |
|
Management Features |
SNMP v1/v2c/v3 centralized management device, RMON, port mirroring, QoS, LLDP, DHCP Server, DHCP Snooping, DHCP relay, user password, login method, file management, log management, port statistics |
|
Safety Technology |
User authority classification, authentication configuration, SSH configuration, HTTPS configuration, access management, SNMP, RMON, NAS, Radius server authentication, TACACS + server authentication, ACL, port alarm, DC power alarm, loop protection |
|
Exchange function |
802.1Q VLAN, static aggregation, LACP |
|
Unicast/Multicast Technology |
IGMP Snooping, IPMC |
|
Redundancy Technology |
Ring, STP/RSTP/MSTP, ERPS |
|
Troubleshooting |
Ping, cable detection |
|
Time Management |
NTP, time zone configuration |
|
interface |
Gigabit electrical port: 10/100/1000Base-T(X), RJ45, automatic flow rate control, full/half duplex, MDI/MDI-X automatic detection; 2.5G SFP slot: 100/1000 Base-X adaptive or 100/1000/2.5G Base-X forced mode, SFP slot Console port: CLI command line management port (RS-232), RJ45 Alarm port: 6-pin 5.08mm pitch terminal block (relays occupy 2 positions), supports 1 relay alarm output, current load capacity is 1A@30VDC or 0.3A@125VAC |
|
Indicator Lights |
Operation indicator, alarm indicator, power indicator, interface indicator |
|
Exchange attributes |
Transmission mode: store and forward MAC address: 8K Cache: 4Mbit Backplane bandwidth: 30G Switching delay: <10μs |
|
power supply |
Power input: 12~48VDC Connection method: 6-pin 5.08mm pitch terminal block (power supply occupies 4 positions) Power supply quantity: dual power supply redundant backup Connection protection: anti-reverse connection Overcurrent protection: 5A |
|
Power consumption |
No load: 3.2W@24VDC Full load: 6.6W@24VDC |
|
Work Environment |
Working temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%~95% (no condensation) |
|
Mechanical structure |
Housing: IP40 protection grade, metal housing Installation: DIN rail installation Weight: 634g Dimensions (width × height × depth): 35mm × 150mm × 120mm |
|
Industry Standards |
IEC 61000-4-2 (ESD, Electrostatic Discharge Immunity), Level 3
IEC 61000-4-4 (EFT, Electrical Fast Transient Burst Immunity), Level 3
IEC 61000-4-5 (Surge), Level 3
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
|
MTBF |
200,000 hours |
|
Certification |
CE, FCC, RoHS |
Download
Datasheet
Thông tin đặt hàng
Layer 2, 4*10/100/1000Base-T(X) RJ45 + 2*100M/1G/2.5G SFP, dual power supply: 12~48VDC, DIN-Rail mounting
