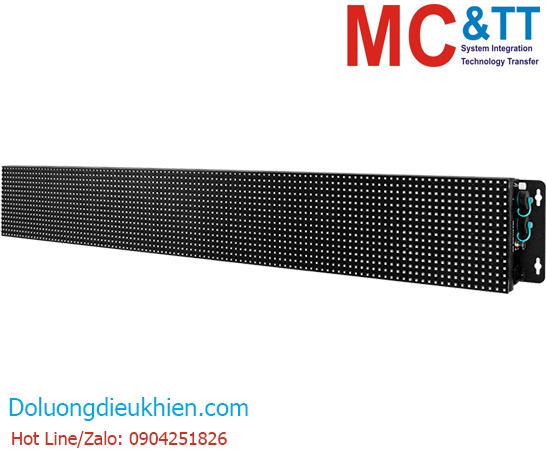

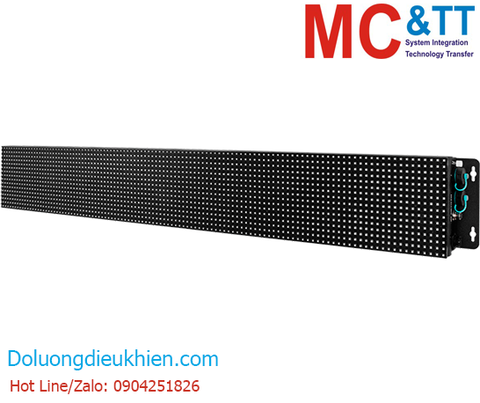

Màn hình LED công nghiệp 8/16 ký tự một hàng RS-485/Ethernet Modbus RTU/TCP ICP DAS iKAN-116A-IP65 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Single-row, 8/16-Character Industrial LED Display with Modbus/TCP protocol, IP65

THÔNG TIN SẢN PHẨM

Features

Supports Modbus TCP Slave and Modbus RTU Slave protocols
Can be remotely controlled using a smart phone or other mobile device
7 colors, including red, blue, yellow, green, light blue, purple and white
Able to store up to 64 common messages and 10 instant messages
Web-based User Interface
Able to integrate both text and variables in a single message
Built-in RTC (Real Time Clock )
Supports multiple languages with a text height of 16 cm
The iKAN IP65 module isn't RoHS compliant

Introduction

The iKAN series is a family of industrial LED display devices that deliver industrial-grade anti-noise capabilities as well as reliability and stability. It is highly suitable for presenting formatted messages in indoor areas using either Unicode characters, which can be used to display multiple languages, or ASCII characters.

The iKAN-116-IP65 provides a single line of eight Unicode characters or 16 ASCII characters, while the iKAN-124 provides 12 Unicode characters or 24 ASCII characters. Support for the popular Modbus industrial protocol is provided meaning that iKAN display devices can be easily integrated into existing PLC and SCADA environments.

The iKAN series allows data written from a PC or a PLC to be displayed in a formatted message in real-time. Seven colors are available for the text, which can be used to indicate different degrees of importance of the message, as well as significantly increase the readability of the message in an industrial arena. Messages can be edited and enabled/disabled using a standard web browser, such as Google Chrome, Firefox, or IE, etc., on a PC, mobile device, or smartphone.

IP65 Rating
The iKAN IP65 model is totally waterproof and dustproof so it can be installed in dirty, soiled, or semi-outdoor environments, such as eaves, open halls, outdoor canopies, or beneath a sunroof.

Specifications

Display
Size	Line: 1 ASCII Characters: 16 Unicode Characters: 8
Real Time Clock	Date and time, 24 hour format including second, minute, hour, date, day of the week, month, year
Character Sets	16 x 16 Unicode or 8 x 16 ASCII
Color	Red, Blue, Yellow, Green, Light Blue, Purple or White
Data Pool	40 Coil values, 64 Float values, and 64 Integer values
Message Pool	128 common messages with user-defi ned priority levels, Up to 20 Unicode characters or 50 ASCII characters each

COM Ports
Ports	2 × RS-485
Baud Rate	1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Data Format	N81, E81, O81
Protocol	Modbus RTU Master/Slave

Ethernet
Ports	2 × RJ-45, 10/100 Base-TX
Protocol	Modbus TCP Master/Slave, Max. 8/8 connections
Configuration	Web-based User Interface

Power
Input Range	100 ~ 240 VAC
Consumption	0.3 A @ AC 120 V

Mechanical
Casing	Aluminum
Dimensions (mm)	1347 x 160 x 81 (W x L x D)
Installation	Wall mounting
Weight	4.6 Kg

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-10 ~ +75°C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

iKAN-116A-IP65

IP65 Single-row, 8/16-Character Industrial Modbus LED Display with Web-based User Interface and Modbus/TCP protocol
