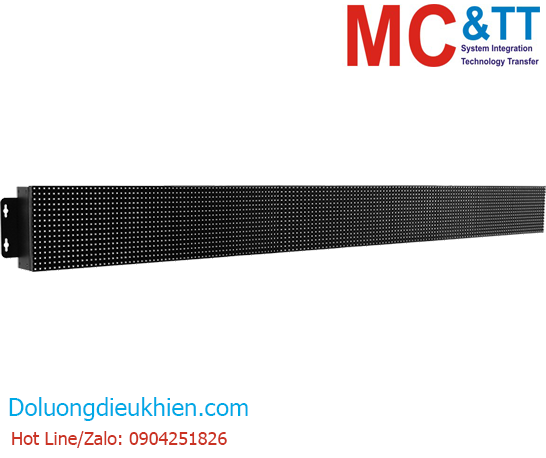

Màn hình LED công nghiệp 12/24 ký tự hỗ trợ Profibus ICP DAS iKAN-124-PFB CR
Features
- Web-Based User Interface
- Embedded PROFIBUS Interface
- 7-color display with a text height of 16/11.5 cm
- Able to store up to 128 messages with priority confi guration
- Supports multiple languages (Glyphs for Arabic, Indian and Thai alphabets are not included)
- 168 variables available for displaying real-time data in a text message
- Can be remotely controlled via a PLC, PC or smartphone
- Supports Modbus TCP/Modbus RTU/CGI protocols
- Able to display indoor air quality indexes from DL modules without any controller
Introduction
The iKAN series is a family of industrial LED message display devices that deliver industrial-grade anti-noise capabilities as well as reliability and stability. ASCII characters and Unicode characters, which can be used to display multiple languages, are supported for presenting formatted messages. Support for the popular Modbus industrial protocol is provided meaning that iKAN display devices can be easily integrated into existing PLC and SCADA environments.
The iKAN series allows data written from a PC or a PLC to be displayed in a formatted message in real-time. Seven colors are available for the text, which can be used to indicate diff erent degrees of importance of the message, as well as signifi cantly increase the readability of the message in an industrial arena.
Messages can be edited using a standard web browser, such as Google Chrome, Firefox, or IE, etc., on a PC, mobile device, or smartphone without any limitations related to specifi c control tools or programs. With an open user interface and the ability to display real-time data, the iKAN series of display devices are highly suitable to be applied in a variety of indoor or semi-outdoor spaces, including shopping malls, railway stations, and industrial areas.
Smart Control with a Smartphone
The iKAN display allows you to edit messages and control the display using your smartphone. This is very useful when you need to quickly and effi ciently display an emergency message to a large number of readers.
IP65 Rating
The iKAN IP65 model is totally waterproof and dustproof so it can be installed in dirty, soiled, or semi-outdoor environments, such as eaves, open halls, outdoor canopies, or beneath a sunroof.
Message Priority
Messages with instant priority have a higher priority than other messages. Once a message with instant priority is enabled, the common message currently being displayed will be suspended until the instant message is disabled. This feature allows the most important information to be displayed in an emergency situation.
Supports PROFIBUS DP Protocol The iKAN-PFB series contains a built-in PROFIBUS communication interface, meaning that the PROFIBUS master device can directly control the message setting for the iKAN-PFB series and modify the variables that are embedded in the message via the PROFIBUS DP protocol.
Specifications
| Display |
| Size |
Line: 1
ASCII Characters: 24
Unicode Characters: 12 |
| Real Time Clock |
Date and time, 24 hour format including second, minute, hour, date, day of the week, month, year |
| Character Sets |
16-bit Unicode or 7-bit ASCII |
| Color |
Red, Blue, Yellow, Green, Light Blue, Purple or White |
| Data Pool |
40 Coil values, 64 Float values, and 64 Integer values |
| Message Pool |
64 common messages and 10 instant messages Up to 40 Unicode characters or 100 ASCII characters each |
| COM Ports |
| Ports |
RS-232 or RS-485.
Note that the interfaces cannot be used simultaneously |
| Baud Rate |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format |
N81, E81, O81 |
| Protocol |
Modbus RTU Master/Slave |
| Ethernet |
| Ports |
1 x RJ-45, 10/100 Base-TX |
| Protocol |
Modbus TCP Slave, Max. 8 connections |
| Configuration |
Web-based User Interface |
| PROFIBUS |
| Controller |
Profichip VPC3+C |
| Transceiver |
ADI ADM2486 |
| Baud Rate |
9.6k, 19.2k, 45.45k, 93.75k, 187.5k, 500k, 1.5M, 3M, 6M, 12M |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol |
DPV0 |
| Power |
| Input Range |
100 ~ 240 VAC |
| Consumption |
0.3 A @ 110 VAC,
0.15 A @ 220 VAC |
| Mechanical |
| Casing |
Aluminum |
| Dimensions (mm) |
1987 x 160 x 73 (W x L x D) |
| Installation |
Wall mounting |
| Weight |
4 Kg |
| Environmental |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-10 ~ +75°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Data sheet
Documents
Ordering information
| iKAN-124-PFB CR |
Single Line, 12/24-Character Industrial LED Display with PROFIBUS Interface (RoHS) |
