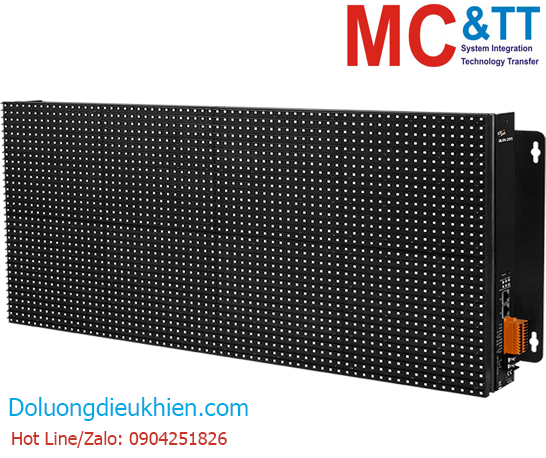

Màn hình LED công nghiệp 8/16 ký tự hai hàng RS-485/Ethernet Modbus RTU/TCP ICP DAS iKAN-208A CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Double-row, 8/16-Character Industrial LED Display with Modbus/TCP protocol

THÔNG TIN SẢN PHẨM

Features

Supports Modbus TCP Slave and Modbus RTU Slave protocols
Can be remotely controlled using a smart phone or other mobile device
7 colors, including red, blue, yellow, green, light blue, purple and white
Able to store up to 64 common messages and 10 instant messages
Web-based User Interface
Able to integrate both text and variables in a single message
Built-in RTC (Real Time Clock )
Supports multiple languages with a text height of 16 cm

Introduction

The iKAN series allows data written from a PC or a PLC to be displayed in a formatted message in real-time. Seven colors are available for the text, which can be used to indicate different degrees of importance of the message, as well as significantly increase the readability of the message in an industrial arena. Messages can be edited and enabled/disabled using a standard web browser, such as Google Chrome, Firefox, or IE, etc., on a PC, mobile device, or smartphone.

Specifications

Display
Size	Line: 2 ASCII Characters: 8 Unicode Characters: 4
Real Time Clock	Date and time, 24 hour format including second, minute, hour, date, day of the week, month, year
Character Sets	16 x 16 Unicode or 8 x 16 ASCII
Color	Red, Blue, Yellow, Green, Light Blue, Purple or White
Data Pool	40 Coil values, 64 Float values, and 64 Integer values
Message Pool	128 common messages with user-defi ned priority levels, Up to 20 Unicode characters or 50 ASCII characters each

COM Ports
Ports	2 × RS-485
Baud Rate	1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Data Format	N81, E81, O81
Protocol	Modbus RTU Master/Slave

Ethernet
Ports	2 × RJ-45, 10/100 Base-TX
Protocol	Modbus TCP Master/Slave, Max. 8/8 connections
Configuration	Web-based User Interface

Power
Input Range	100 ~ 240 VAC
Consumption	0.3 A @ AC 120 V

Mechanical
Casing	Aluminum
Dimensions (mm)	707 x 320 x 50 (W x L x D)
Installation	Wall mounting
Weight	4 Kg

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-10 ~ +75°C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

iKAN-208A

Double-row, 4/8-Character Industrial Modbus LED Display with Web-based User Interface and Modbus/TCP protocol
