Bộ Chuyển Đổi Quang Điện Công Nghiệp 1 Cổng Gigabit Ethernet + 1 Cổng Quang SFP 3Onedata IMC101GT-1GS

Thương hiệu: 3Onedata | Tình trạng: Còn hàng

Liên hệ

2-port Full Gigabit Unmanaged Industrial Media Converter

THÔNG TIN SẢN PHẨM

Features

Support 1 Gigabit fiber port or SFP slot optional, 1 Gigabit copper port

Support input voltage: 12~48VDC, nonpolarity, reverse polarity protection

Support -40~75℃ wide operating temperature range

Introduction

IMC101GT series are 2-port full Gigabit unmanaged industrial media converter. This series include two types of products and provide Gigabit copper port, Gigabit fiber port and Gigabit SFP slot. It adopts DIN-Rail mounting to meet the requirements of different application scenes.

Design of DIP switch can achieve flow control, copper port compulsive 100M, LFP alarm and jumbo frame. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.

Specification

Standard

Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3z for 1000Base-X

IEEE 802.3ab for 1000Base-T

IEEE 802.3x for Flow Control

Interface

Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning

Fiber port: 1000Base-FX, SC/ST/FC optional

SFP slot: 1000Base-SFP

LED Indicator

Running indicator, Port Indicator, Power Supply Indicator, LFP indicator

Switch

Property

Transmission mode: store and forward

MAC address: 1K

Packet buffer size: 1Mbit

Backplane bandwidth: 12G

Switch time delay: < 10μs

Power

Requirement

12~48VDC, 3-pin 7.62mm pitch terminal blocks

Support nonpolarity, reverse polarity protection

Environmental

Limit

Operating temperature: -40~75℃

Storage temperature: -40~85℃

Relative humidity: 5%～95%（no condensation）

Physical Characteristic

Housing: IP40 protection, metal

Installation: DIN-Rail mounting

Dimension (W x H x D): 35mm×110mm×95mm

Weight: ≤350g

Industrial

Standard

IEC 61000-4-2 (ESD), Level 4

Air discharge: ±16kV

Contact discharge: ±8kV

IEC 61000-4-4 (EFT), Level 2 (IMC101GT-1GF)

Power supply: ±1kV

Ethernet interface: ±0.5kV

IEC 61000-4-4 (EFT), Level 1 (IMC101GT-1GS)

Power supply: ±0.5kV

Ethernet interface: ±0.25kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Certification

CE, FCC, RoHS

Warranty

5 years

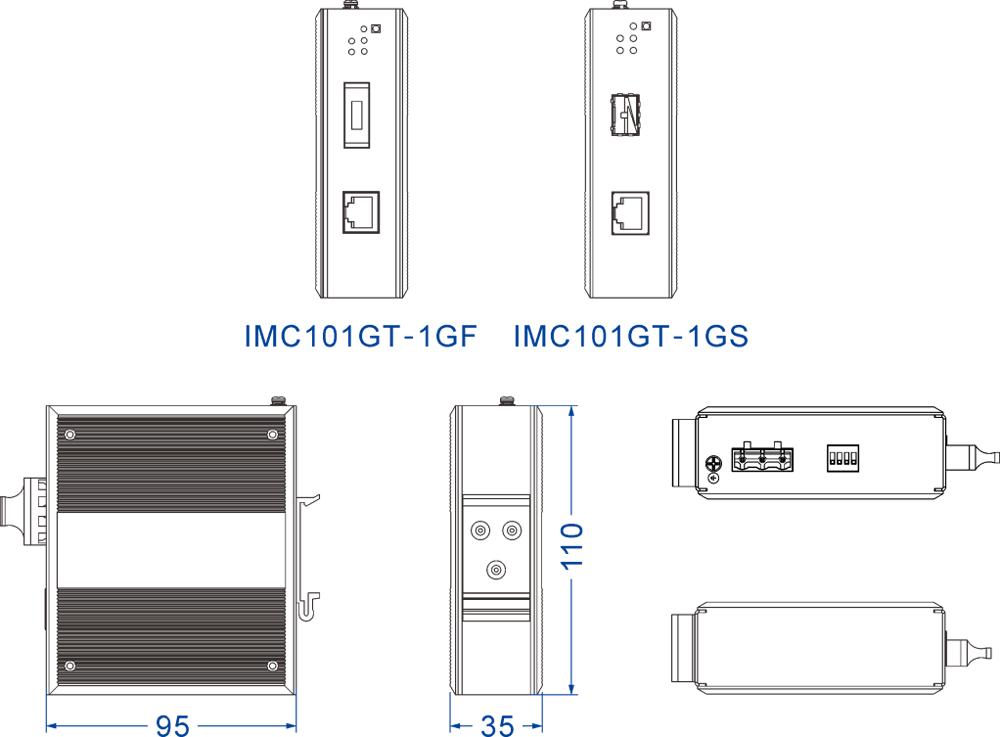

Dimension

Download

IMC101GT Series Datasheet

Ordering Information

Available Models	Gigabit SFP Slot	Gigabit Fiber Port	Gigabit Copper Port	Power Supply Range
IMC101GT-1GF	0	1	1	12~48VDC
IMC101GT-1GS	1	0	1	12~48VDC
