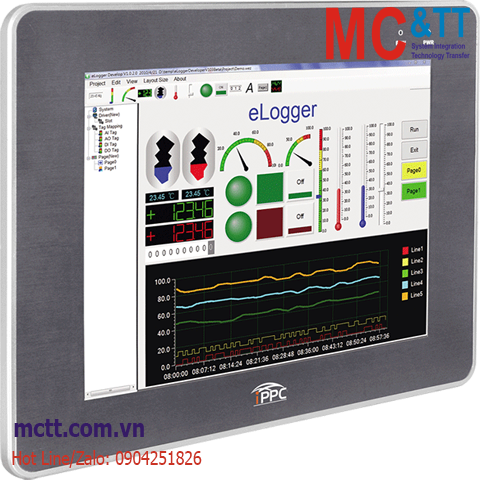

Máy tính công nghiệp màn cảm ứng 10.4 inch CPU E3845 + Win10 IoT ICP DAS iPPC-4801-IoT CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

10.4" Panel PC with Atom E3845 CPU and Win10 IoT

THÔNG TIN SẢN PHẨM

Features

• Windows 10 IoT Enterprise Indise
• Intel® Atom™ E3845 1.91 GHz
• 10.4" TFT LCD with Touch Panel
• Rich software support
• Various Memory and Storage
      ‣ 4 GB DDR3 SDRAM
      ‣ 16 KB EEPROM and 128 KB MRAM for data retention
      ‣ 64 GB SSD
‣ 32 GB CF Card
• Various Communication Interfaces
      ‣ 1 x RJ-45, 10/100/1000 BASE-TX Ethernet Port
      ‣ 2 x Serial Ports (RS-232/RS-422/RS-485)
      ‣ 2 x USB 2.0 (host)
• 64-bit Hardware Serial Number for Software Protection
• Redundant Power Input

Introduction

The iPPC-4801-IoT series is Windows 10 IoT Enterprise based Panel PC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual iPPC. It is equipped with an Intel Atom E3845 CPU,TFT LCD and a variety of connectives including dual Gigabit Ethernet, USB port, RS-232 and RS-485 interface. The operating system is pre-installed in the built-in mSATA SSD, and the storage can be expanded from a Compact Flash slot. Remote I/O expansion is available to use our Ethernet I/O modules and RS-485 I/O modules. Designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust. Designed to operate over a wide -20°C ~ 60°C ambient temperature range, the fanless design off ers the ultimate in reliability with no moving parts.

Application

https://mctt.vn/iot-ippc-icp-das

Specifications

Software
OS	Windows 10 IoT Enterprise Indise
Framework Support	.Net Framework 3.5, 4.0, 4.5, 4.8
Multilanguage Support	English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
SDK	Dll for VC, Dll for Visual Studio.Net

Main Unit
CPU	E3845, 1.91 GHz, 64-bit quad core
64-bit Hardware Serial Number	Yes
System Memory	4 GB DDR3 SDRAM
Storage	64 GB SSD, 32 GB CF card
Non-Volatile Memory	128 KB MRAM, 16 KB EEPROM
Real Time Clock	Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer	Dual Watchdog Timer

Display
Size	10.4"
Backlight Life	50,000 hours
Brightness	400 cd/m2
Resolution	800 x 600
Touch Panel	5-wire, resistive type; light transmission: 80 %
Contrast Ratio	500：1

LED Indicators
Status	1 x System, 1 x Power

COM Ports
Ports	2 x RS-232/RS-422/RS-485

HMI
Buzzer	Yes
Rotary Switch	1 x 10 Position (0 ~ 9)

Audio
Jack	Earphone-out

Ethernet
Ports	1 x RJ-45, 10/100/1000 Base-TX

USB
Ports	2 x USB 2.0

Power
Input Range	+10 ~ 30 VDC (1500 VDC Isolated)
Redundant Power Inputs	Yes
Consumption	22.0 W

Mechanical
Casing	Metal
Dimensions (mm)	291 x 229 x 53 (W x L x H)
Panel Cut-Out (mm)	274 x 211, ±1 (W x H)
Installation	Panel Mounting, VESA Mounting (75 x 75, 100 x 100)
Ingress Protection Rating	Front panel: NEMA 4/IP65

Environment
Operating Temperature	-20 ~ +60 °C
Storage Temperature	-20 ~ +70 °C
Humidity	10 ~ 90 % RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

iPPC-4801-IoT CR

10.4" Panel PC with Atom E3845 CPU and Win10 IoT (RoHS)
