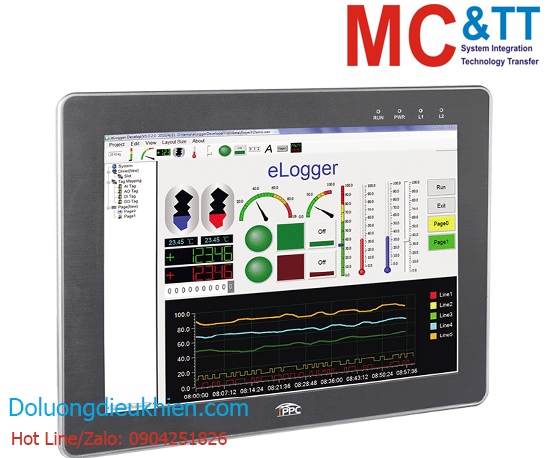

Máy tính công nghiệp màn hình cảm ứng 15 inch + Atom E3827 CPU + WES7 + 3 Slot I/O ICP DAS iPPC-6731-WES7 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

15" Panel PC with Atom E3827 CPU, WES7, and 3 I/O Slots

THÔNG TIN SẢN PHẨM

Features

• Windows Embedded Standard 7 SP1 x86 (32-bit)
• Intel® Atom™ E3827 1.75 GHz
• 2 GB DDR3 SDRAM
• 32 GB SSD
• 3 I/O Expansion Slots
• 15" LCD with Touch Panel
• NEMA 4/IP65 Compliant Front Panel
• Operating Temperature: -20 ~ +60°C

Introduction

The iPPC-6731-WES7 series product is WES7 based Panel PC that combine computing, I/O, and operator interface into a single unit, and provides a perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Intel Atom E3827 CPU, three I/O expansion slots, TFT LCD and a variety of connectives including dual Gigabit Ethernet, USB port, RS-232 and RS-485 interface. The operating system is pre-installed in the built-in mSATA SSD, and the storage can be expanded via a Compact Flash slot. The local I/O slots are available for using our I-8K or I-87K series I/O modules and remote I/O expansion is available for connecting to our Ethernet I/O modules or RS-485 I/O modules. The iPPC-6731-WES7 is designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust. It is also designed to operate over a wide -20°C to 60°C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts. Since WES7 has the same Win32 API as Windows 7, most popular applications on desktop can run on WES7 based Panel PC.

Specification

Software
OS	Windows Embedded Standard 7 SP1
Service	IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script)
Framework Support	.Net Framework 3.5, 4.0, 4.5
Multilanguage Support	English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
SDK	Dll for VC, Dll for Visual Studio.Net

Main Unit
CPU	E3827, 1.75 GHz, 64-bit dual core
64-bit Hardware Serial Number	Yes
System Memory	2 GB DDR3 SDRAM
Non-Volatile Memory	128 KB MRAM, 16 KB EEPROM
Storage	32 GB SSD, 16 GB CF card
Real Time Clock	Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer	Dual Watchdog Timer

Display
Size	15"
Backlight Life	50,000 hours
Brightness	400 cd/m2
Resolution	1024 x 768
Touch Panel	5-wire, resistive type; light transmission: 80 %
Contrast Ratio	700：1

LED Indicators
Status	1 x System, 1 x Power, 2 x Programmable

I/O Expansion
I/O Type	I-8K, I-87K series
Slots	3

COM Ports
Ports	1 x RS-232, 1 x RS-485 (2500 VDC), 1 x RS-232/RS-485 (2500 VDC)

HMI
Buzzer	Yes
Rotary Switch	1 x 10 Position (0 ~ 9)

Audio
Cable	Microphone-in and Earphone-out

Ethernet
Ports	2 x RJ-45, 10/100/1000 Base-TX

USB
Ports	3 x USB 2.0

Power
Input Range	+10 ~ 30 VDC (1 kV Isolated )
Redundant Power Inputs	Yes
Consumption	25.0 W

Mechanical
Dimensions (mm)	381 x 305 x 88 (W x L x H)
Panel Cut-Out (mm)	366 x 290, ±1 (W x H)
Installation	Panel Mounting
Ingress Protection Rating	Front panel: NEMA 4/IP65
Weight	5 kg

Environmental
Operating Temperature	-20 ~ +60 °C
Storage Temperature	-20 ~ +70 °C
Humidity	10 ~ 90 % RH, Non-condensing

Download

Data sheet

Documents

Ordering information

iPPC-6731-WES7 CR

15" Panel PC with Atom E3827 CPU, WES7, and 3 I/O Slots (RoHS)
