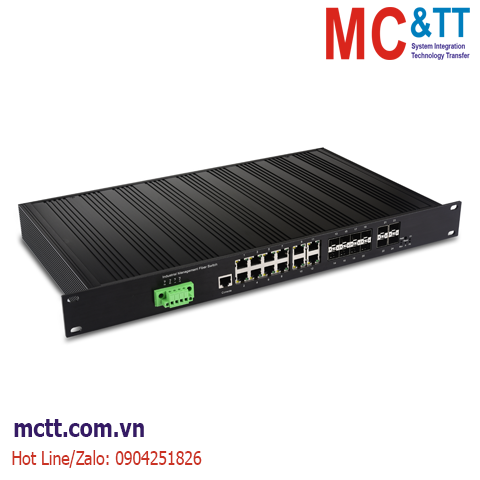

Miễn phí vận chuyển với đơn hàng từ 10.000.000đSwitch công nghiệp quản lý Layer 2 12 cổng 1G Ethernet + 12 cổng 1G SFP JHA TECH JHA-MIGS1212H
Short Description:
* Support 12 1000Base-X SFP slot and 12 10/100/1000Base-T(X) Ethernet port;
* Support STP/RSTP/MSTP production tree protocol, eliminate layer two loop, realize link backup;
* Support IEEE 802.1Q VLAN, users can flexibly divide VLAN according to their needs, support Voice VLAN, and support QinQ configuration;
* DC36-72V redundancy power, reverse polarity protection;
* Industrial grade 4 design, -40-85°C operating temperature;
* IP40 rated aluminum alloy housing, 1U Rack Mount;
* 5-year warranty.
Product Overview
JHA-MIGS1212H is a high performance, cost-effective high-end Layer 3 industrial Ethernet switch. The switch provides 12 10/100/1000Base-T(X) Ethernet port and 12 1000Base-X SFP slot. It Support WEB management, VLAN, QoS, SNMP, IGMP snooping and other network functions; Support Ethernet fast ring network protection former STP/RSTP/MSTP spanning tree ring network; Industrial-grade three-level ESD protection is suitable for many occasions,such as Intelligent transportation, outdoor surveillance, industrial networks, safe cities, and other harsh environments require deployment in this product while adopting a fanless, low power consumption, industrial-grade design, and an operating temperature range of -40 to 85°C, which can meet various industrial site requirements.
Features
* Support 12 1000Base-X SFP slot and 12 10/100/1000Base-T(X) Ethernet port.
* Support STP/RSTP/MSTP production tree protocol, eliminate layer two loop, realize link backup;
* Support IEEE 802.1Q VLAN, users can flexibly divide VLAN according to their needs, support Voice VLAN, and support QinQ configuration;
* Support IGMP V1/V2 multicast protocol, support IGMP Snooping, meet multi-terminal high-definition video;
* DC36-72V redundancy power, reverse polarity protection;
* Industrial grade 4 design, -40-85°C operating temperature;
* IP40 rated aluminum alloy housing, 1U Rack Mount
Specification
|
Interface |
|
|
Fiber Port |
12*100/1000Base-X SFP |
|
Ethernet Port |
12*10/100/1000 Base－T |
|
Manage Port |
1*RJ45 Console port |
|
Power connector |
4P Phoenix terminal, dual power supply redundancy, 100-240VAC input |
|
LED Indicator |
PWR (green); System indicator: SYS (green); Network indicator: Speed (green) Link (yellow), optical port L/A (green) |
|
Cable type and distance |
|
|
Twisted pair cable |
0-100m (CAT5e, CAT6) |
|
Single-mode fiber |
20/40/60/80/100KM |
|
Multimode fiber |
550m/2KM |
|
Optical fiber interface |
LC/SC |
|
Network topology & scale |
|
|
Ring topology |
Support |
|
Star topology |
Support |
|
Bus topology |
Support |
|
Tree topology |
Support |
|
Hybrid topology |
Support |
|
Electrical characteristics |
|
|
Input voltage |
DC36~72V/AC 100-240V 50-60HZ |
|
Power consumption |
Non-POE full load (Total power) <70W |
|
L2 Features |
|
|
Exchange capacity |
128G |
|
Packet forwarding rate |
95.23Mpps |
|
MAC address table |
16K |
|
VLAN support and quantity |
Support 4K |
|
Report buffer |
12M |
|
Forwarding delay |
<10us |
|
Port characteristics |
Cross-connect and direct-adaptive |
|
Flow control |
Support |
|
Jumbo frame support |
Support 10Kbytes |
|
Spanning Tree Protocol |
Support STP/RSTP/MSTP |
|
Ring network protocol |
Support ERPS |
|
Link aggregation |
Support 12 groups |
|
Multicast |
Support IGMP Snooping |
|
Port mirroring |
Support |
|
Storm suppression |
Support |
|
|
Port traffic statistics |
Support |
|
|
Port flow system |
Support |
|
|
QINQ |
Support |
|
|
Protection |
Shell: IP40 protection, aluminum alloy housing IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us) IEC 61000-4-3 Level 3 (10V/m) IEC 61000-4-4 Level 3 (1V/2V) IEC 61000-4-6 Level 3 (10V/m) IEC 61000-4-8 Level4 (30A/m) IEC 61000-4-11 Level3 (10V) EMI CLASS A IEC 61000-4-2 Level 4 (15KV/30KV) Free fall 0.5m |
|
|
Convergence Service |
||
|
ACL |
Support 500 ACLs; Support IP standard ACL; Support MAC extended ACL; Support IP extended ACL; |
|
|
QoS |
Support QoS re-marking and priority mapping; Support SP, WRR queue scheduling; Support entry speed limit and exit speed limit; Support flow-based QoS |
|
|
Management function |
||
|
Command line |
Support |
|
|
Management serial port |
Support |
|
|
Telnet |
Support |
|
|
WEB management |
Support |
|
|
SNMP |
Support SNMPv1/v2c |
|
|
User management |
Support |
|
|
System log |
Support |
|
|
File upgrade |
Support |
|
|
Firmware upgrade |
Support |
|
|
SFP module DDM |
Support |
|
|
Environmental conditions |
||
|
Working temperature |
-40℃~+85℃ |
|
|
Storage/transport temperature |
-40℃~+85℃ |
|
|
Relative humidity |
5%~95% does not support condensation (non-condensing) |
|
|
Cooling method |
No fan design, natural heat dissipation |
|
|
Working temperature |
-40℃~+85℃ |
|
|
Mechanical structure |
|
|
Size |
440X250X44.5mm |
|
Installation method |
1U 19’’ Rack Mount Installation |
|
Weight |
3.5KG |
Dimension
Order Information
|
Model No. |
Description |
|
JHA-MIGS1212H |
L2 Managed Industrial Ethernet Switch, 12 1000Base-X SFP Slot and 12 10/100/1000Base-T(X), 1U 19’’ Rack Mount Installtion, DC36~72V, -40-85°C Operating Temperature |
