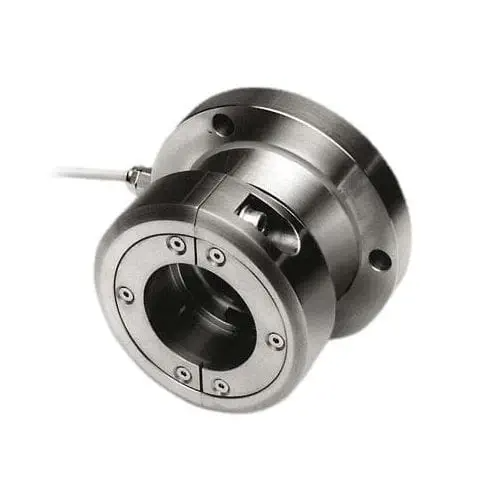

Cảm biến đo lực 0.5 - 6.5 kN Lorenz K-2148

Thương hiệu: Lorenz Messtechnik | Tình trạng: Còn hàng

Liên hệ

Web Tension Sensor K-2148 - Lorenz Messtechnik GmbH

THÔNG TIN SẢN PHẨM

K-2148, Web Tension Measurement
The K-2148 is a specifically designed solution for Web Tension Measurement. Designed to be used with two sensors and a deflection roll in the middle, the web tension of production rolls can be monitored effectively and easily.

Features:

Easy to Change Idler Pulley
Tension
Accuracy: ±0.5%
Outer Diameter: 105.0mm
Height: 81.8mm
Connection: 12m Integral Cable
Stainless Steel

K-2148 - Specifications

Type	Rod Type
Application	Tension
Full Scale	220 lbs
	450 lbs
Output	0.5 mV/V
	1 mV/V
Precision	±0.5 % FS
Excitation	2 V - 12 V DC
IP Rating	IP63
Min Temperature	0 °C
Max Temperature	60 °C

Download

Type:	K-2148
Measuring Range:	0.5..6.5 kN
Accuracy Class:	0.5
Range of Application:	Web Tension Sensor, e.g. for Tension Measurement of Belt Conveyors in the Paper Industry
PDF Datasheet:	080823b_K-2148_en.pdf
PDF Operation Manual:	-
CAD Files:	DXF IGS; STP
