Module 8 đầu vào số + 8 đầu ra số Kinco K623S-16DT

Thương hiệu: Kinco | Tình trạng: Còn hàng
Liên hệ

DI 8*DC24V (NPN/PNP), DO 8*DC24V (PNP)

Gọi +84 904251826 để được trợ giúp

Module 8 đầu vào số + 8 đầu ra số Kinco K623S-16DT

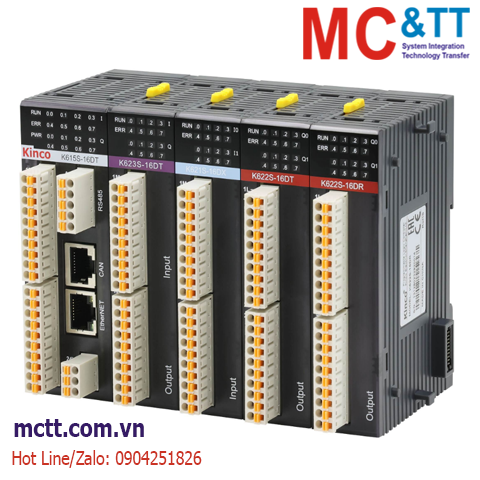

Kinco K6S series PLC is a compact modular PLC. The modular plug-in design saves more than 50% of the horizontal installation space, and the wiring can be tightened without tools, making the installation and maintenance process simpler and more efficient. The "simplified" appearance design is also equipped with a powerful core, which integrates high-speed input/output, Ethernet, CAN, RS485 and other conventional functional interfaces, further improving the flexibility, reliability, efficient control and other performance of Kinco PLC. Indicators provide reliable control solutions for industrial automation systems.

Tính năng

  • Equipped with a new MCU platform, the execution speed is further improved. At the same time, it provides a program storage space of 8k instructions and a data storage space of 20k bytes (V area + M area), which guarantees the implementation of complex control programs.
  • It comes standard with a 10/100M Ethernet port and supports Modbus TCP Client/Server and Modbus UDP industrial bus protocols. It is easy to use and powerful, and is suitable for application needs in more situations.
  • The CAN interface supports the CANopen master function, allowing a maximum of 64 slave stations to be connected. Each slave station allows a maximum of 8 TPDOs and 8 RPDOs, and supports error control methods such as node protection and heartbeat. It supports the Kinco motion control protocol and provides easy-to-use positioning control instructions. Users can easily connect Kinco's servo and driver through the CAN bus. The Kinco motion control protocol supports the connection of up to 16 nodes.
  • Integrated real-time clock (RTC), 4 high-speed pulse outputs (all channels support PTO\PWM mode), 4 high-speed counting inputs (support single\dual phase, AB quadrature counting mode), 1 Ethernet interface, 2 RS485 interface, both CAN and RS485 have built-in isolation.
  • Supports the array function, supports the use of up to 16 arrays, and each array allows up to 1024 elements (the elements can be any data type supported by the K series PLC). Users can use the array function to perform functions such as maximum, minimum, average, sorting, etc. They can also use arrays to further expand data storage space.
  • Supports the stack function, supports the use of up to 2 stacks, and each stack allows up to 1024 elements (the elements can be any data type supported by the K series PLC). Users can use the stack function to achieve corresponding needs, and can also use the stack to further expand the data storage space.
  • Modular plug-in design saves more than 50% of installation space. A maximum of 16 expansion modules can be expanded on the right side. The module types are rich, giving users more and more flexible solutions.
  • KincoBuilder software provides convenient and easy-to-use motion control instructions, and is also equipped with a guidance function to help users get started with zero threshold, rapid configuration, and efficient programming.

Thông số kỹ thuật

Model K623S-16DT K621S-16DX
Overview 16-channel transistor input/output mixed (8DI/8DO) 16-channel PNP/NPN type digital inputs
Type Transistor Inputs(NPN/PNP)
Transistor Outputs(PNP)
Transistor Inputs(NPN/PNP)
Channels 16 channels(8 channels/group)
8DI/8DO
16 channels(8 channels/group)
16DI
Power Supply Powered by Expansion Bus Powered by Expansion Bus
Input Range The maximum input voltage for signal "0" is 5V and the current is 0.8mA.
The minimum input voltage for signal "1" is 11V and the current is 2mA
The maximum input voltage for signal "0" is 5V and the current is 0.8mA.
The minimum input voltage for signal "1" is 11V and the current is 2mA
Input Delay Turn-on <18μs
Turn-off <50μs
Turn-on <18μs
Turn-off <50μs
Isolation Optical isolation, 500VAC/min Optical isolation, 500VAC/min
Rated Output Voltage DC20.4V ~ DC28.8V -
Output Current per Channel 300mA@24VDC
Output Leakage Current 10μA -
Output Impedance 0.20Ω -
Output Delay Turn-on <30μs
Turn-off <50μs
-
Protection Inductive load output protection
Output polarity reversal protection
Short-circuit protection
-
Dimension 27x75.15x106mm 27x75.15x106mm

Expansion Module

K621S-16DX DI 16* DC24V (NPN/PNP)
K622S-16DT DO 16*DC24V (PNP)
K622S-16DR DO 16*Relay
K623S-16DT DI 8*DC24V (NPN/PNP), DO 8*DC24V (PNP)
K622S-16DTN DO 16*DC24V(NPN)
K633S-06IV

12 bit resolution, accuracy 0.3% full scale

4 channel AI: 4-20mA, 1-5V, 0-20mA, 0-10V

2 channel AO: 4-20mA, 1-5V, 0-20mA, 0-10V

K631S-04TC

4 channels of thermocouple input

support J,K,E,S,T-type thermocouples

cold junction compensation, external compensation optional

24-bit resolution, accuraty 0.1% full scale

K631S-04RD

4 channels of thermal resistance (RTD) input

support PT100, Cu50, PT1000 resistance forms

support two-wire, three-wire, connection methods

24 bit resolution

temperature: ± 0.6℃; Resistance: ±10

Thông tin đặt hàng

  • K623S-16DT

DI 8*DC24V (NPN/PNP), DO 8*DC24V (PNP)

Tài liệu

Catalog

KincoBuilder_V8.5--Software for K series
