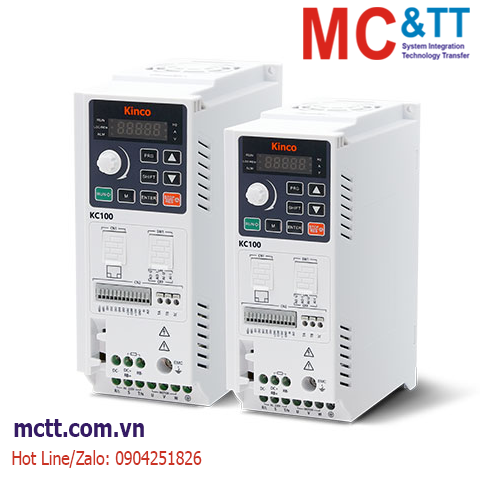

Biến tần 1 pha 220VAC 0.4kW Kinco KC100-2S-0R40G

Thương hiệu: Kinco | Tình trạng: Còn hàng

Liên hệ

VFD Single-phase 220VAC, 50/60Hz, 0.4kW

THÔNG TIN SẢN PHẨM

Tính năng

Overcurrent suppression protection: real-time current monitoring, automatically limit the current to no more than the overcurrent suppression point;
Overvoltage suppression protection: When no brake resistor is connected, the operating frequency is automatically adjusted or the bus voltage rise is suppressed by flux braking.
Undervoltage suppression protection (instantaneous non-stop): It can realize the function of instantaneous power loss without stopping；
Wave-by-wave current limiting: When the sudden load or abnormal conditions such as momentary spikes in the current occurs, it will trigger the wave-by-wave current limit protection, which can limit the rise of the current to a certain extent, so that the current does not exceed the protection value of the inverter, and avoid reporting overcurrent fault and shutdown；
Heat dissipation treatment: Independent air duct design, close to the IGBT power device efficient cooling, while the software built-in automatic reduction of carrier frequency according to temperature rise；
Overvoltage, overcurrent fault protection；
Input phase loss: Detect input phase loss based on bus voltage fluctuations. When phase loss occurs, a certain load is required to detect it
Output phase loss: Output phase loss fault can be quickly detected before and during operation；
Phase to phase short circuit and short circuit to ground fault: quickly detected within 20ms before operation；
Inverter module overtemperature, parameter self-learning failure, current detection failure, SVC stall failure, etc.

Thông số kỹ thuật

Inverter model	Power supply capacitykVA	input currentA	output currentA	Adaptive motorkW
single-phase 200-240V 50Hz/60Hz
KC100-2S-0R40G	1.0	5.3	2.5	0.4
KC100-2S-0R75G	1.5	8.2	4.0	0.75
KC100-2S-01R5G	3.0	14.0	7.5	1.5
KC100-2S-02R2G	4.0	23.0	10.0	2.2
three-phase 380-480V 50Hz/60Hz
KC100-4T-0R75G	1.5	3.4	2.3	0.75
KC100-4T-01R5G	3.0	5.0	3.7	1.5
KC100-4T-02R2G	4.0	5.8	5.5	2.2
KC100-4T-03R7G	5.9	10.5	8.8	3.7
KC100-4T-05R5G	8.5	14.5	13.0	5.5

Thông tin đặt hàng

Tài liệu

KC100 Series Inverter Selection Manual

Kinco KC100 Series User Manual

Kinco KC100 Series Draw
