Module RS-485 Modbus RTU 4 kênh đầu vào nhiệt độ DS18B20 Daisy-Chain ICP DAS M-2004 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

4-port Digital Temperature Sensor Module with Daisy-Chain Wiring

THÔNG TIN SẢN PHẨM

Module RS-485 DCON & Modbus 4 kênh đầu vào nhiệt độ chức năng Daisy-Chain ICP DAS M-2004 CR

Tính năng

4-Port DS18B20 Sensor Input Module
2/3-wire DS18B20 Wire Connection
Max 20 Sensors per Port
Max. Distance of 100 m per Port when using Daisy-Chain Wiring
Measures Temperatures from -55 to +125°C
±0.5°C Accuracy from -10 to +85°C

Giới thiệu

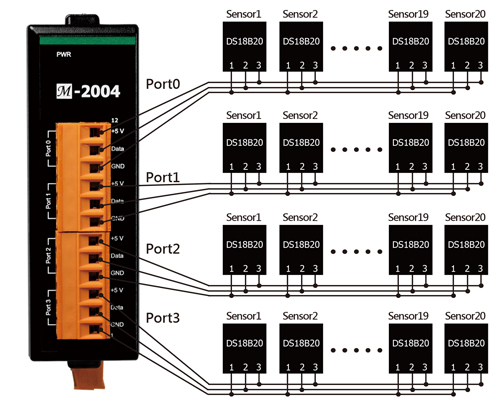

The M-2004 is a digital temperature sensor module that provides four ports for 2- or 3 wire DS18B20 digital temperature sensor input. The DS18B20 temperature sensor has a high accuracy of ±0.5°C when measuring temperatures between -10 and + 85°C, with a total measurement range of between -55 and +125°C. Up to 20 DS18B20 sensors can be connected to each port on the M-2004 module in a daisy-chain arrangement with a maximum wiring distance of 100 meters. The M-2004 module is fully RoHS compliant, and features 4 kV ESD protection as well as 3000 VDC intra-module isolation.

Ứng dụng

• Temperature Measurement
• Environment Monitoring
• Tunnel Monitoring
• Building Monitoring

Specification

CPU Module
Watchdog Timer	Yes, Module (1.6 Seconds), Communication (Programmable)

Isolation
Intra-module Isolation	3000 VDC

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for power liner
ESD (IEC 61000-4-2)	±4 kV Contact for each Terminal ±8 kV Air for Random Point
Surge (IEC 61000-4-5)	±2 kV for power liner

LED Indicators
Status	1 x Power and Communication

Temperature Measurement
Range	-55 °C to +125 °C

Analog Input
Wiring Cables Length	Max. 100 m per Port

Analog Input
Ports	4
Sensor Type	DS18B20
Sensors per Ports	20
Resolution	12-bit
Accuracy	±0.5 °C (See Note 1)
Sampling Rate	1 Hz

COM Ports
Ports	1 x RS-485
Baud Rate	1200 to 115200 bps
Data Format	N81, N82, E81, O81
Protocol	Modbus RTU, DCON
Bias Resistor	Yes, 1k Ω bias resistor by switch selectable

Power
Reverse Polarity Protection	Yes
Input Range	+10 VDC ~ +48 VDC
Consumption	0.5 W

Mechanical
Dimensions (mm)	33 x 117 x 88 (W x L x H)
Installation	DIN-Rail

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 95% RH, Non-condensing

Specification Memo

Note :1 ±0.5°C Accuracy from -10°C to +85°C

Download

Data sheet

Documents

Thông tin mua hàng

M-2004 CR

4-port DS18B20 Temperature Sensor Module using the DCON and Modbus Protocols (RoHS)
