Cảm biến đo Momen xoắn và lực 2 Nm / 100N - 5 Nm / 500 N Lorenz M-2371

Thương hiệu: Lorenz Messtechnik | Tình trạng: Còn hàng
Liên hệ

Multi-Component Sensor M-2354 (force & torque transducer) for force and non rotary (static) torque measurement produced & distributed by Lorenz Messtechnik GmbH

Gọi +84 904251826 để được trợ giúp

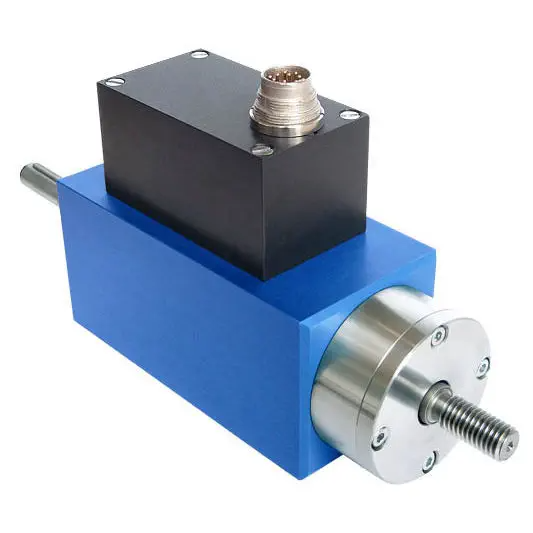

Cảm biến đo Momen xoắn và lực 2 Nm / 100N - 5 Nm / 500 N Lorenz M-2371

M-2371, Multi-Component Sensor
The M-2371 multi-component sensor is capable of measuring rotary torque and load forces. Its contactless data transmission makes the unit maintenance-free.

Features:

  • Torque & Load Force
  • Contactless
  • Round & Keyway Shaft
  • Accuracy: Load Range: ±0.4%
  • Accuracy: Torque Range: ±0.2%
  • Height: 103.5 mm
  • Length: 195.0 mm
  • Width: 53.0 mm
  • Connection: 12-pin Connector with Speed Option
  • Analog Output ±5V (±10V Option)

M-2371 - Specifications

Type Multi-Axis
# of Axis 2 (Fz, Mx)
Application Tension & Compression
Full Scale 22 lbs
  55 lbs
  112 lbs
Output 5 V DC
Precision ±0.4 % FS
Excitation 12 V - 28 V DC
Min Temperature 5 °C
Max Temperature 45 °C

Download

Type: M-2371
Measuring Range: 2 N·m / 100N....5 N·m / 500 N
Accuracy Class: 0.4 (F)
0.2 (Mt)
Speed/Angle Measurement: ✓ Option
Range of Application: Torque -, Force -, Speed-, and Angle of Rotation Measurement; e.g. for Continuous Stress Test of Pumps and Master Key Systems
Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 12-pin female cable connector and free soldered ends
Connection cable, 3 m, with 12-pin female angle cable connector and free soldered ends

PDF Datasheet: 080985_M-2371_en.pdf
PDF Operation Manual: -
CAD Files: DXF
IGS
