Module 8 kênh đầu ra PWM + 8 kênh đầu vào bộ đếm tốc độ cao kết nối RS-485 DCON & Modbus RTU ICP DAS M-7088D

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

M-7088D-G CR 8-channel PWM Output and 8-channel High-speed Counter Module using the DCON and Modbus Protocols with 7-segment LED Display (Gray Cover) (RoHS)

THÔNG TIN SẢN PHẨM

Features

8-channel PWM Output and 8-channel Counter Input
Burst Mode and Continuous Mode for PWM Output
Software and Hardware Trigger Mode for PWM Output
Individual and Synchronous PWM Output
High-speed Counters
4 kV ESD and EFT Protection
Dual Watchdog
Wide Operating Temperature Range: -25 to +75°C

Introduction

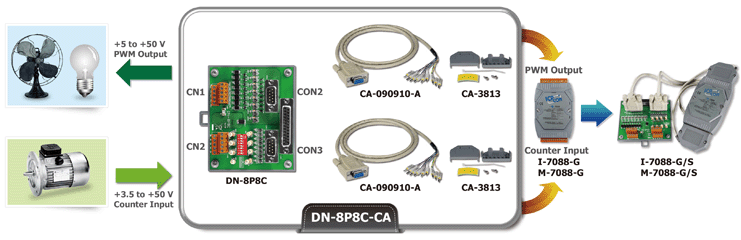

The I-7088 provides 8-channel PWM (Pulse Width Modulation) Output and 8-channel Counter Input, and can be used to develop powerful and cost-effective analog control systems. PWM is a powerful technique for controlling analog circuits that uses the Digital Output to generate a waveform with a variable duty cycle and frequency which can then be used to control an analog circuit in applications such as controlling the position or speed of motors, the brightness of lamps, or the speed of fans, etc. Either burst mode or continuous mode can be used for the PWM output depending on the application. In addition, all Digital Input channels can be used as high-speed counters with a speed of up to 1 MHz. The M-7088 supports both the Modbus RTU and the DCON protocols, which can be confi gured via software, and all hardware specifi cations are the same as the I-7088. The I-7088(D)/S and M-7088(D)/S allows the load voltage to be increased from +3.5 to +50 V for the 8-channels PWM (Pulse Width Modulation) output and the 8-channels high-speed counter.

Application

Controlling Motor Position/Speed
Dimming Lamp Brightness
Controlling Fan Speed

I/O Specification

Model		I-7088	I-7088D	I-7088/S	I-7088D/S
		M-7088	M-7088D	M-7088/S	M-7088D/S
Counter Input
Channels		8
Contact		Wet
Sink/Source (NPN/PNP)		Sink
On Voltage Level		+3.5 ~ +5 VDC		+3.5 ~ +50 VDC
Off Voltage Level		+1 VDC Max.		+1 VDC Max.
Programmable Filter		-
Programmable Threshold Voltage		-
Counter Bits		32-bit
Counter Mode		Up
Encoder Mode		-
Frequency Mode		-
Virtual Battery Backup		Yes
Frequency Accuracy		-
Max. Speed		1 MHz
PWM Output
Channels		8
Type		PWM, TTL
Sink/Source (NPN/PNP)		Sink
Load Voltage		+5 VDC		+5 ~ +50 VDC
Max. Load Current	Sink	+5 VDC @ 10 mA/Channel		+50 VDC @ 200 mA/Channel
	Source	+5 VDC @ 1 mA/Channel		-
PWM	Frequency	1 Hz ~ 500 KHz
	Duty Cycle	0.1 to 99.9%
	Mode	Burst, Continuous
	Burst Count	1 to 65535
	Trigger Start	Hardware or Software
Power-on Value		-
Safe Value		-

System Specification

Model	I-7088	I-7088D	I-7088/S	I-7088D/S
	M-7088	M-7088D	M-7088/S	M-7088D/S
Communication
Interface	RS-485
Bias Resistor	No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.)
Format	(N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Baud Rate	1200 to 115200 bps
Protocol	DCON
	Modbus RTU, DCON
Dual Watchdog	Yes, Module (1.6 Seconds), Communication (Programmable)
LED Indicator/Display
System LED Indicator	Yes, 1 as Power/Communication Indicator
I/O LED Indicator	7-segment
7-Segment LED Display	-	Yes	-	Yes
Isolation
Intra-module Isolation, Field-to-Logic	2500 VDC
EMS Protection
ESD (IEC 61000-4-2)	±4 kV Contact for each Terminal
EFT (IEC 61000-4-4)	±4 kV for Power Line
Surge (IEC 61000-4-5)	-
Power
Reverse Polarity Protection	Yes
Format	+10 ~ +30 VDC
Baud Rate	2.9 W	3.4 W	2.9 W	3.4 W
Mechanical
Dimensions (L x W x H)	123 mm x 72 mm x 35 mm
Installation	DIN-Rail or Wall Mounting
Environment
Operating Temperature	-25 to +75°C
Storage Temperature	-40 to +85°C
Humidity	10 to 95% RH, Non-condensing
