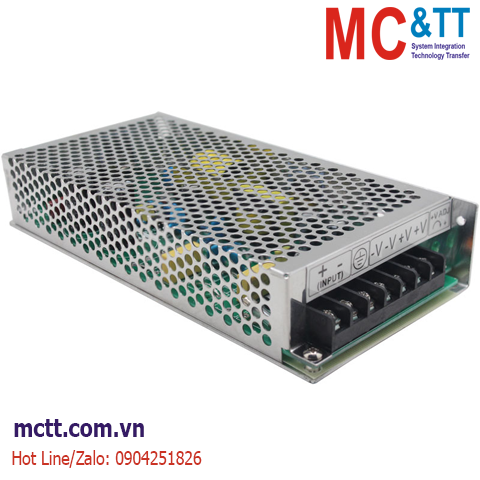

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ đổi nguồn DC/DC MCTT-SD-120C-48 120W, 48VDC, 2.5A
120W Single Output DC-DC Converter SD-120 series
Features:
2:1 wide input range
Protections: Short circuit / Overload / Over voltage
1500VAC I/O isolation
Built-in EMI filter, low ripple noise
100% full load burn-in test
Fixed switching frequency at 83 KHz
24V and 48V input voltage design refer to LVD
Low costHigh reliability
1 years warranty
| SPECIFICATION | ||||||||||||
| OUTPUT | ||||||||||||
| Model | SD-120B-5 | SD-120C-5 | SD-120D-5 | SD-120B-12 | SD-120C-12 | SD-120D-12 | SD-120B-24 | SD-120C-24 | SD-120D-24 | SD-120B-48 | SD-120C-48 | SD-120D-48 |
| DC Voltage | 5V | 12V | 24V | 48V | ||||||||
| Rated Current | 24A | 10A | 5A | 2.5A | ||||||||
| Current Range | 0~24A | 0~10A | 0~5A | 0-2.5A | ||||||||
| Rated Power | 120W | 120W | 120W | 120W | ||||||||
| Ripple&Noise | 100mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | ||||||||
| Voltage Adj.Range | 4.5~5.5VDC | 11~16VDC | 23~30VDC | 43.2-52.8VDC | ||||||||
| Voltage Tolerance | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ||||||||
| Line Regulation | ±0.5% | ±0.3% | ±0.2% | ±0.2% | ||||||||
| Load Regulation | ±0.5% | ±0.3% | ±0.2% | ±0.2% | ||||||||
| Setup, Rise Time | 2s,50ms(only D mode) at full load | |||||||||||
| Hold Up Time | 20ms(only D mode) at full load | |||||||||||
| INPUT | ||||||||||||
| Voltage Range | B:19~36VDC C:36~72VDC D:72~144VDC or 85~132VAC | |||||||||||
| Efficiency | 74% | 75% | 76% | 75% | 77% | 80% | 78% | 81% | 83% | 78% | 81% | 83% |
| DC Current | 4.8A/24V | 2.4A/48V | 1.8A/96V | 4.8A/24V | 2.4A/48V | 1.8A/96V | 4.8A/24V | 2.4A/48V | 1.8A/96V | 4.8A/24V | 2.4A/48V | 1.8A/96V |
| Inrush Current | D:18A/96VDC | |||||||||||
| Leakage Current | <0.75mA/120VAC(SD-100D) | |||||||||||
| PROTECTION | ||||||||||||
| Over Load | 105~135% rated output power | |||||||||||
| Protection type: Hiccup mode,recovers automatically after fault condition is removed | ||||||||||||
| Over Voltage | 5.75~6.75V/10%load | 16.8~20V/10%load | 31.5~37.5V/10%load | 60.2-79.2/10%load | ||||||||
| Protection type:Hiccup mode,recovers automatically after fault condition is removed | ||||||||||||
| ENVIRONMENT | ||||||||||||
| Working Temp. | -10~+60℃ (Refer to“Derating Curve”) | |||||||||||
| Working Humidity | 20~90%RH non-condensing | |||||||||||
| Storage Temp.,Humidity | -20~+85℃,10~95%RH | |||||||||||
| Temp.Coefficient | ±0.03%/℃ (0~50℃) | |||||||||||
| Vibration | 10~500Hz,2G 10min./1cycle,60min.each along X, Y, Z axes | |||||||||||
| SAFETY &EMC | ||||||||||||
| Safety Standards | IEC60950-1CB approved by TUV(for D type only) | |||||||||||
| Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||||||||||
| Isolation Resistance | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC /25℃ /70%RH | |||||||||||
| EMC Emission | Compliance to EN55022(CISPR22) Class B | |||||||||||
| EMC Immunity | Compliance to EN61000-4-2,3,4,6,8,light industry level,criteria A | |||||||||||
| OTHERS | ||||||||||||
| Dimension | 199*98*38mm(L*W*H) | |||||||||||
| Weight | 0.55Kg | |||||||||||
| Packing | 30pcs/16.5Kg | |||||||||||
| NOTE | ||||||||||||
| 1. All parameters NOT specially mentioned are measured at 24,48,96VDC input, rated load and 25℃ of ambient temperature. | ||||||||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||||||||||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | ||||||||||||
| 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | ||||||||||||
