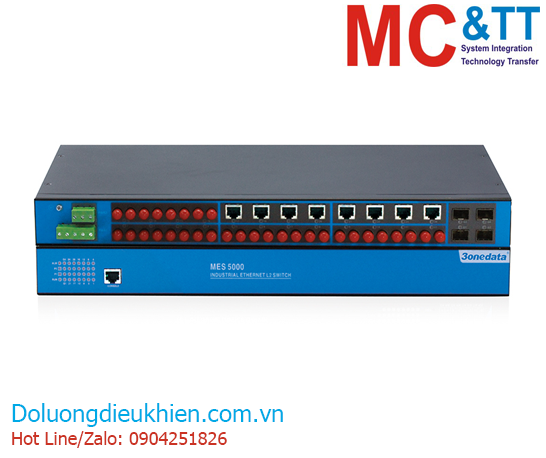

Miễn phí vận chuyển với đơn hàng từ 10.000.000đSwitch công nghiệp quản lý IEC61850 8 cổng Ethernet + 16 cổng quang+4 cổng quang Gigabit SFP 3Onedata MES5000-4GS-8T16F
Features
Support 4 gigabit fiber ports ( SFP slot) and 24 100M fiber/copper ports
Conform to IEC61850 and IEEE1613 industrial standards
Adopt SW-Ring patent technology, support single ring, coupling ring, chain ring, Dual-homing ring network function, automatic recovery time of network failure < 20ms
Support dual power supply input, input voltage: 90～264VAC or 36~72VDC
Support -40~75℃ wide operating temperature range
Introduction

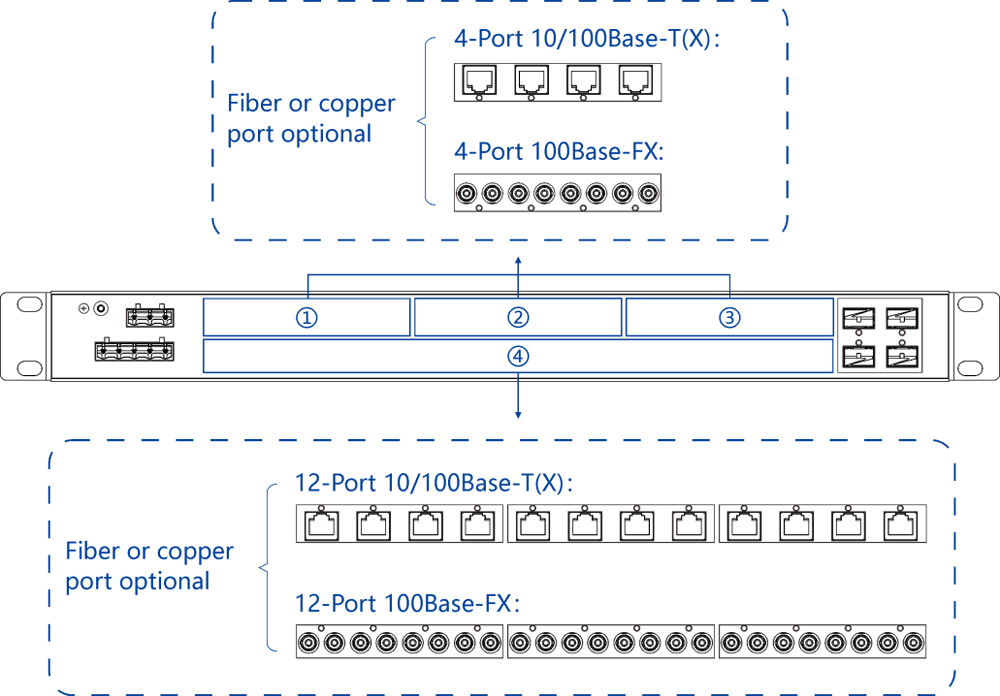

MES5000 series are 28-port 100M/gigabit layer 2 managed industrial Ethernet switches. This series have seven types of products and adopt modular design, which supports 3 4-port 100M fiber/copper port modules. They provide various interfaces like 100M copper port, 100M fiber port and gigabit SFP slot and adopt 1U rack mounting, which can meet the requirements of different scenes.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, LLDP, IGMP Static Multicast, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
The products are up to the industrial standards of IEC61850 and IEEE1613, and have acquired SGCC’s (State Grid Corporation of China) Class A authentication and CSG’s (China Southern Grid) type test. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It is designed for power industry and can be widely used in the controller layer and process layer network of substations.
Features and Benefits
SNMPv1/v2c is used for network management of various levels
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
QoS supports real-time traffic classification and priority setting
LLDP can achieve automatic topology discovery, which is convenient for visual management
DHCP sever and DHCP client could be used for allocating IP address of different strategies
File management is convenient for rapid configuration and online upgrade of the device
Log management records boot information, operation information and connection information
Port statistics can be used for the port real time traffic statistics
User password can conduct user hierarchical management to improve the device administrative security
MAC port locking could enhance the flexibility and security of network
E-mail alarm is convenient for discovering faults in time during remote management
Relay alarm is convenient for troubleshooting of construction site
Storm suppression can restrain broadcast, unknown multicast and unknown unicast
VLAN can simplify the network planning
Port trunking can increase network bandwidth and the reliability of network connection to achieve optimal bandwidth utilization
Bandwidth management and flow control can reasonably distribute network bandwidth, preventing unpredictable network status
IGMP-snooping, GMRP and static multicast can be used for filtering multicast traffic to save the network bandwidth
SW-Ring and STP/RSTP can achieve network redundancy, preventing network storm.
Specification
| Standard
&Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol EEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.1AB for LLDP
|
| Management |
SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, LLDP, DHCP Server, DHCP Client, File Management, Port Statistics
|
| Security |
Classification of User Permissions, Port Alarm, Power Supply Alarm, E-mail Alarm
|
| Switch Function |
802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control
|
|
Unicast / Multicast
|
Static Multicast, GMRP, IGMP-Snooping |
|
Redundancy Protocol
|
SW-Ring, STP/RSTP
|
| Time Management |
SNTP
|
| Interface |
Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX, SC/ST/FC optional SFP slot: 1000Base-SFP Console port: CLI command line management port(RS-232), RJ45 Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity is 5A@30VDC or 10A@125VAC
|
| LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
|
| Switch
Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 3Mbit Backplane bandwidth: 12.8G Switch time delay: <10μs
|
| Power
Requirement |
Dual power supply redundancy, AC or DC power supply optional AC power supply: 90~264VAC, support 8A over-current protection DC power supply: 36~72VDC, support 5.5A over-current protection
|
| Power
Consumption |
No-load: 19.4W@220VAC
Full-load: 21.9W@220VAC |
| Environmental
Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
| Physical Characteristic |
Housing: IP40 protection, metal Installation: 19-inch 1U rack mounting Dimension (W x H x D): 441.6mm×290mm×44.45mm Weight: 4.5kg
|
| Industrial
Standard |
IEC 61000-4-2 (ESD), Level 4 Air discharge: ±15kV Contact discharge: ±8kV IEC 61000-4-3 (RS), Level 3 Test level: 20V/m Frequency range: 80MHz~1000MHz IEC 61000-4-4 (EFT), Level 4 Power supply: ±4kV Ethernet port: ±2kV Relay: ±2kV IEC 61000-4-5 (Surge), Level 4 Power supply: common mode±4kV, differential mode±2kV Ethernet port: ±2kV IEC 61000-4-6 (CS), Level 3 Test level: 10V Frequency range: 150kHz-80MHz IEC 61000-4-8 (PFMF), Level 5 Stable magnetic field: 100A/m IEC 61000-4-9, Level 5 Magnetic field strength: 1000A/m IEC 61000-4-10, Level 4 Magnetic field strength: 30A/m Test frequency: 100kHz and 1MHz IEC 61000-4-12, Level 5 Test level: common mode 2.5kV, differential mode 1kV Test frequency: 1MHz, 100kHz IEC 61000-4-29 Voltage interrupts: 0%UT Duration: 100ms, 3次 Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
| Certification |
CE, FCC, RoHS, IEC61850, IEEE1613, Class A of SGCC(Test standards: Q/GDW 11202.4-2014, Q/GDW 1429-2012, DL/T 1241-2013), CSG(Type test)
|
| Warranty |
5 years |
Dimension
Download
Ordering Information
| Available Models | Gigabit SFP Slot | 100M Fiber Port | 100M Copper Port | Power Supply Range |
| MES5000-4GS-24T | 4 | 0 | 24 | 90~264VAC
or 36~72VDC dual power supply |
| MES5000-4GS-20T4F | 4 | 4 | 20 | |
| MES5000-4GS-16T8F | 4 | 8 | 16 | |
| MES5000-4GS-12T12F | 4 | 12 | 12 | |
| MES5000-4GS-8T16F | 4 | 16 | 8 | |
| MES5000-4GS-4T20F | 4 | 20 | 4 | |
| MES5000-4GS-24F | 4 | 24 | 0 |
