MiniOS7 Utility API
Open source code to realize customization
Integrate application depends on customer's requirements

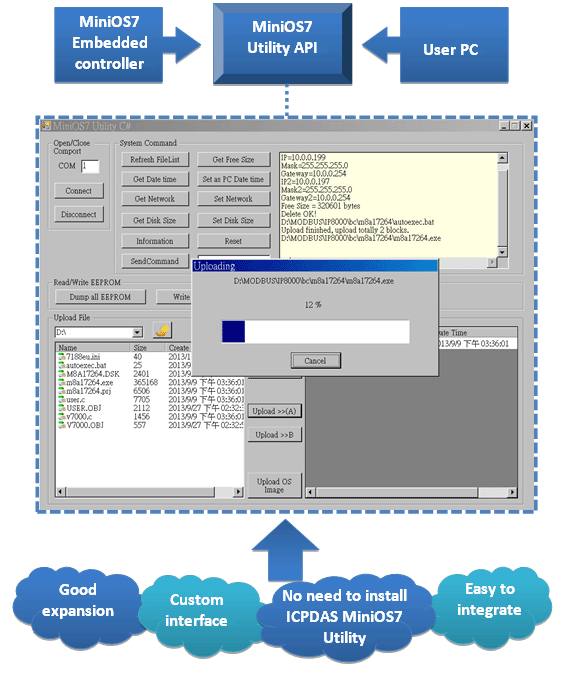

MiniOS7 APIs support programmer to send MiniOS7 command or upload file from host PC.
Programmer can integrate APIs into an application to let user set IP, update firmware and so on. User doesn’t need to install ICPDAS MiniOS7 Utility anymore.
◆ Supported functions
| File maintenance | Upload File |
| Erase Disk | |
| Update OS Image | |
| Download/Upload EEPROM Configuration | |
| System command | Get file list & available size |
| Set/Get Network setting | |
| Set/Get Date Time | |
| Set/Get Disk Size | |
| Reset | |
| Get OS information | |
| OS version | OS |
| OS Type | |
| build | |
| Hardware info | Hardware |
| CPU | |
| Serial number | |
| Reset by | WDT or Power on |
| Initial pin status | Close or Open |
| Memory | SRAM |
| Flash Memory(include Disk A, Disk B, Reserve) | |
| Network | MAC address |
| IP/IP2 | |
| Mask/Mask2 | |
| Gateway/Gateway2 | |
| Others | Alias |
| Date and Time | |
| Slot and module on it | |
| Comport setting | |
| Note: V1.0.1 supports RS-232 connection only | |
◆ Supported products
MiniOS7 embedded products
◆ PC Requirements
For Programmer
VB6 or C#.NET installed
For User
Windows 95/98/NT/2000/XP/Vista/Windows 7
