MODEL271-M: Bộ chuyển đổi RS-232/RS-485/RS-422 sang quang Multi-Mode 3Onedata

Thương hiệu: 3Onedata | Tình trạng: Còn hàng

Liên hệ

Model271-M: RS-232/485/422 to optic fiber, multi-mode 2Km, 9-36VDC, SC/ST/FC optional

Model271-S: RS-232/485/422 to optic fiber, single-mode 20Km, 9-36VDC, SC/ST/FC optional

Model271-SS: RS-232/485/422 to optic fiber, single-mode, single fiber 20Km, 9-36VDC, SC/ST/FC optional

THÔNG TIN SẢN PHẨM

MODEL271-M: Bộ chuyển đổi RS-232/RS-485/RS-422 sang quang Multi-Mode 3Onedata

The Model271 Series serial to fiber optic converter is equipped with a multiple interface circuit that can handle RS-232, or RS-422/485 serial interfaces and multi-mode or single- mode fiber. Model271 converters are used to extend serial transmission distance up to 2-5 km (multi-mode fiber) or up to 20-120 km (single- mode fiber). Note that the RS-232 and RS-422/485 interfaces cannot be used on the same Model271 at the same time.

Features

1.Auto sense serial signal rate, zero delay automatic transmit

2.500Kbps the highest baud rate

3.Supply three interface (RS232/485/422)

4. Multi-mode 2KM, signal-mode 20~120KM

5.Compact Size

6.Decreases Signal interference

7.DIN Rail or Wall-mounting

Specification

RS-232/485/422

Standard: EIA RS-232, RS-485, RS-422

Connector: Terminal Block

RS-232 Signals: Tx, Rx, GNG

RS-422 Signals: T+, T-, R+, R-

RS-485 Signals: T+, T-

Baud rate: 0-500kbps

ESD Protection: 15KV for all signals

Fiber Optic

Fiber Connector: SC, FC or ST optional

Fiber Optic Cable Requirements

Single-mode: 8.3/125, 8.7/125, 9/125 or 10/125μm

Multi-mode: 50/125, 62.5/125, or 100/140μm

Transmission

Single-mode: 20, 25, 40, 60, 80, 100, 120KM optional

Multi-mode: 2, 5KM

Wavelength

Single-mode: 1310nm

Multi-mode: 850nm

Tx Output

Single-mode: >-5dBm

Multi-mode: >-5 dBm

Rx Sensitivity

Single-mode: -25dBm

Multi-mode: -25dBm

Point-to-Point Transmission: Half-duplex or full-duplex

Ring Transmission: Half-duplex

Physical Characteristics

Case: Iron

Dimensions: 100*69*22mm

Environment

Operating temperature: -25°C to 70°C
Storage temperature: -40°C to 85°C

Relative Humidity: 5 to 95%

Power Requirements

Input Voltage: 9-36VDC

Consumption: 120mA

Warranty: 3 Years

Approvals: FCC, CE, RoHS approvals

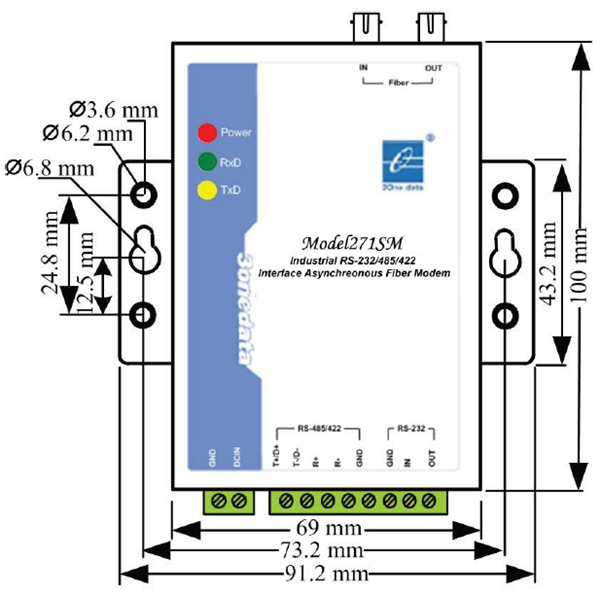

Dimension

Download

model271-datasheet

model271-usermanual

Ordering Information

Model271-M:

RS-232/485/422 to optic fiber, multi-mode 2Km, 9-36VDC, SC/ST/FC optional

Model271-S:

RS-232/485/422 to optic fiber, single-mode 20Km, 9-36VDC, SC/ST/FC optional

Model271-SS:

RS-232/485/422 to optic fiber, single-mode, single fiber 20Km, 9-36VDC, SC/ST/FC optional
