Bộ lập trình nhúng PAC XP-9000-IoT trên nền tảng Windows 10 IoT

Thứ Sáu, 09/10/2020

Nguyễn Văn Hùng

The XP-9000-IoT are Windows 10 IoT Enterprise based PACs that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Intel E3845 CPU, 1/3/7 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA , USB port, RS-232 and RS-485 interface. Local I/O slots are available to use our I-9K and I-97K series I/O modules and remote I/O expansions are available to use Ethernet I/O modules and RS-485 I/O modules.

Windows 10 IoT Enterprise runs on 64-bit x86 platform with support for both Universal Windows App and Classic Windows applications.

Software Features

Windows 10 IoT:

Windows 10 IoT is a member of the Windows 10 family that brings enterprise-class power, security and manageability to the Internet of Things. It leverages Windows' embedded experience, ecosystem and cloud connectivity, allowing organizations to create their Internet of Things with secure devices that can be quickly provisioned, easily managed, and seamlessly connected to an overall cloud strategy.

• Traditional Windows Shell with Advanced Lockdown Features
• Full Windows UI support (e.g. UWP, WinForms, etc)

Rich Software Solutions
Visual Studio .Net 2008 and VC solution: SDK as well as demo programs for C#, VB.Net and VC are provided.
eLogger HMI: A free charge and easy-to-use software to implement HMI and data logger, supporting Modbus TCP/RTU/ASCII master and MQTT protocols. (See more...)

Hardware Features

Powerful CPU Module

E3845 (1.91 GHz, quad core)
4 GB SDRAM (DDR3)

Built-in VGA and HDMI Port

A built-in VGA and HDMI port can be directly connected to a regular display. Users can operate the HMI or SCADA software (running on the XP-9000-IoT) with display, keyboard and mouse just as howthey usually did on regular PCs.

64-bit Hardware Serial Number

The 64-bit hardware serial number is unique and individual. Every serial number of XP-9000-IoT PAC is different. Users can add a checking mechanism to their AP to prevent software from pirating.

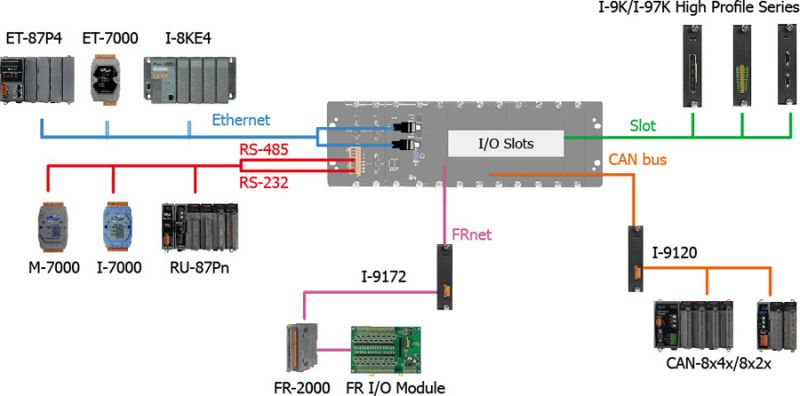

Rich I/O Expansion Ability (RS-232/485, USB, Ethernet)

Beside the local I/O slots, XP-9000-IoT also provides several RS-232/RS-485/USB ports and two Ethernet ports to connect with serial/USB I/O and Ethernet I/O devices.

Dual Watchdog Timer

A system could be hanged up when the OS or the AP fails. There are two watchdogs (CPU watchdog and Backplane watchdog) designed to automatically reset the CPU/Backplane when the situations happen. The design will increase the reliability of the system.

Dual Ethernet Ports

XP-9000-IoT provides two Gigabit Ethernet ports. The two Ethernet ports can be used to implement redundant Ethernet communication and separate Ethernet communication (one for global Internet, one for private Ethernet).

Rugged RJ-45 connector for LAN1

The XP-9000-IoT is equipped with a rugged and dustproof RJ-45 connector on the LAN1 port that is able to provide protection against both liquid and dust contaminants in harsh industrial environments, as well as protection against vibration and shock.

Power/Communication spring clamp terminal connector

The spring clamp terminal block that is used for the Power/Communication connector in the XP-9000-IoT offers advantages including anti-vibration, stable clamping, and easier installation.

Metal Enclosure

The XP-9000-IoT features a durable metal casing to provide high levels of impact resistance and flame resistance, and higher protection on EMS or other electromagnetic noises.

Redundant Power Inputs

To prevent the XP-9000-IoT from failing by the power loss, the power module is designed with two inputs. The XP-9000-IoT can keep working even one power input fails, and mean while there is a relay output for informing the power failure.
