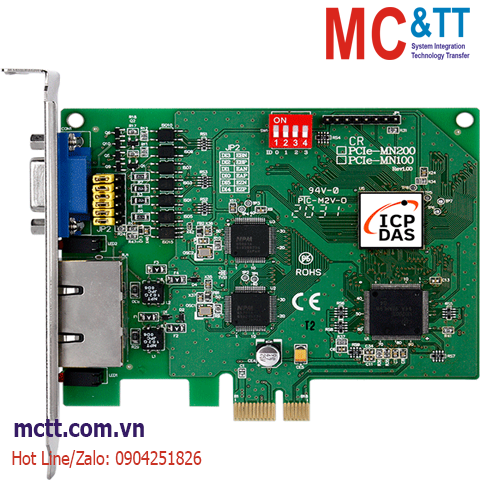

Card PCI Express Dual-line Motionnet Motion Control ICP DAS PCIe-MN200 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

PCI Express Bus, Dual-line Motionnet Motion Control Module (For Distributed Motion & I/O Control)

THÔNG TIN SẢN PHẨM

Features

Maximum Communication Speed: 20 Mbps
Distributed motion control up to 128 axes
Distributed I/O points up to 4096 points
Easy connection using RJ-45 phone jack connector
Parallel 1/0 Ports: 8 Input and 4 Output channels
Optional quadrature encoder input for linear scale or manual pulse generator input

Introduction

The PCIe-MN200 is a Motion Control Module that provides two Motionnet serial communication lines for distributed motion and I/O control in machine automation applications. The Master card can be used to connect up to 128 Slave modules (64 x 2 lines). If one of the Motionnet lines is only used for I/O control, it can send/receive signals to/from 2048 points on 64 local devices within 0.97 msec. When it is used to control motors, it can control up to 64 axes, which can be used to execute continuous positioning motion, zero return, and even multi-axis interpolation operations. In addition to serial communication, the PCIe-MN200 is also equipped with parallel I/O ports (8 input channels and 4 output channels) for rapid and instinctive I/O control.

Applications

Click to view the Introduction of https://mctt.vn/motionnet-control-icp-das

Specifications

Software
OS Support	Windows 7/10 32/64-bit Windows XP/2000 32-bit
Development	VC/VB/BCB
Utility	--

Hardware
Connector	HD D-Sub 15-pin x 1

LED Indicators
Status	Connection (green) Communication Error (red)

General
Interrupts	Input Change of State, Communication Error

Digital Input
Channels	8
Type	12-24 V, NPN or PNP
Isolation	--
Input Impedance	--

Digital Output
Channels	4
Type	NPN or PNP
Isolation	--

PC Bus
Type	PCI Express x1

Motionnet
Communication Connectors	RJ-45 x 2
Transfer Speed	2.5, 5, 10, 20 Mbps (Software controlled)
Length	Max. 100 M (20 Mbps; 32 Slave modules) Max. 50 M (20 Mbps; 64 Slave modules) Max. 100 M (10 Mbps; 64 Slave modules)
Protocol	--

Power
Consumption	--

Environment
Operating Temperature	0 ~ +60 °C
Storage Temperature	20 ~ +80 °C
Humidity	Operating: 10 ~ 85%; non-condensing Storage: 5 ~ 95%; non-condensing

Download

Datasheet

Documents

Ordering Information

PCIe-MN200 CR

PCI Express Bus, Dual-line Motionnet Motion Control Module with RJ-45 (RoHS)
