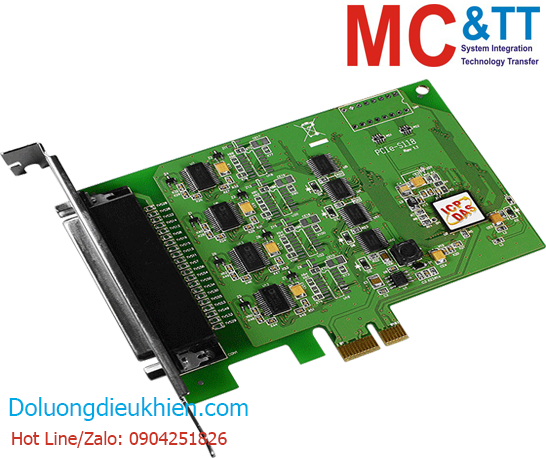

Miễn phí vận chuyển với đơn hàng từ 10.000.000đCard PCI Express 8 cổng COM RS-232 ICP DAS PCIe-S118 CR
Features
Introduction
The PCIe-S118 card provides 8 RS-232 serial ports. It is equipped with a 256-byte hardware FIFO for each port, supports for speed up to 921600 bps and supports full-duplex communication. The PCIe-S118 card support drivers choose an available COM port number automatically.
The serial communication card are designed for use with intelligent devices like bar code reader, serial printers, intelligent sensors, instrumentation equipment, computers and almost any device with an RS-232 port.
Specification
| Hardware | |
|---|---|
| Connector | Female DB-62 |
| COM Ports | |
|---|---|
| Ports | 8 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND) |
| Baud Rate | 2400 - 921600 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 256 bytes |
| Power | |
|---|---|
| Consumption | 120 mA @ 5 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 121 x 131 x 22 (W x L x D) |
| Environmental | |
|---|---|
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Download
Odering information
| PCIe-S118 CR | PCI Express, Serial Communication Board with 8 RS-232 ports (RoHS) Includes one CA-PC62M D-Sub connector |
