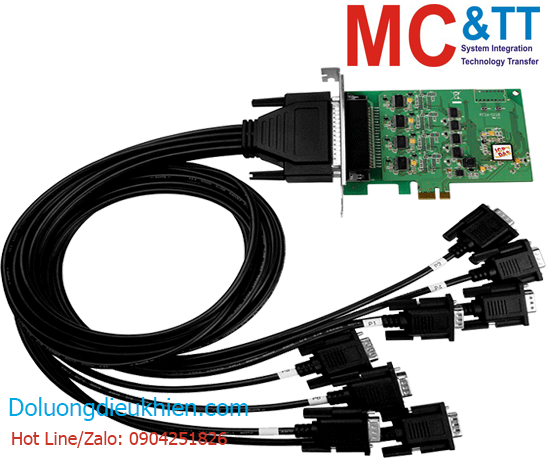

Card PCI Express 8 cổng COM RS-232 ICP DAS PCIe-S118/D2 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

PCI Express, Serial Communication Board with 8 RS-232 ports

THÔNG TIN SẢN PHẨM

Features

Supports PCI Express x1
Provides 8 RS-232 ports
Automatically select an available COM port number
Supports COM port number selection under software control
256-byte Hardware FIFO for Each Port
Short Card Design
RoHS compliant & No Halogen

Introduction

The PCIe-S118 card provides 8 RS-232 serial ports. It is equipped with a 256-byte hardware FIFO for each port, supports for speed up to 921600 bps and supports full-duplex communication. The PCIe-S118 card support drivers choose an available COM port number automatically.

The serial communication card are designed for use with intelligent devices like bar code reader, serial printers, intelligent sensors, instrumentation equipment, computers and almost any device with an RS-232 port.

Specification

Hardware
Connector	Female DB-62

COM Ports
Ports	8 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND)
Baud Rate	2400 - 921600 bps
Parity	None, Even, Odd, Mark, Space
Data Bit	5, 6, 7, 8
Stop Bit	1, 1.5, 2
FIFO Size	Internal 256 bytes

Power
Consumption	120 mA @ 5 V

Mechanical
Dimensions (mm)	121 x 131 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Data sheet

D ocuments

Odering information

PCIe-S118/D2 CR

PCI Express, Serial Communication Board with 8 RS-232 ports (RoHS)
Includes one CA-9-6210 cable
