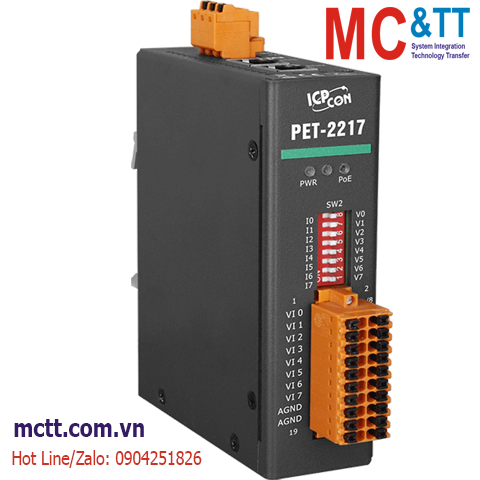

Module 2 cổng PoE Ethernet Modbus TCP & MQTT 8/16 kênh AI ICP DAS PET-2217 CR
Features
- Built-in Web Server
- Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
- 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
- Dual Watchdog
- I/O Pair Connection (Push and Pull)
- Built-in I/O
- AI: 8 Channels or 16 Single-ended Analog Inputs
Introduction
The PET-2217 is a module with either 8 differential or 16 single-ended analog inputs. The module provides a programmable input range for all Analog Input channels, including ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V, 0 to 20 mA, 4 to 20 mA, and ±20 mA. Each analog input channel can be configured with an individual input range, providing high overvoltage protection up to 120 VDC and overcurrent protection up to 50 mA at 110 VDC/VAC. Voltage and current input can be selected via a DIP switch.
The sampling rate of the PET-2217 is adjustable and can be set to either fast mode (200Hz) or normal mode (20Hz). It can be used to record the voltage and current information. The module also features per-channel open wire detection for 4 to 20 mA input and provides 4 kV ESD/EFT protection, 2 kV Surge protection, and 3000 VDC intra-module isolation for added safety.
The PET-2217 module supports the MQTT protocol and can act as both a message publisher and subscriber. When connected to the MQTT Broker server, the module can publish the I/O status in real time using a topic and receive messages from subscribed topics. If the PET-2217 module becomes disconnected from the broker during communication, it has a reconnection mechanism that can automatically restore the connection. Additionally, a Keep-Alive Interval mechanism is in place to ensure a persistent connection with the Broker.
The PET-2217 supports the SNMP V2c specification, enabling it to transmit both module and I/O information to SNMP network management equipment or software (SNMP Network Management Software), providing real-time monitoring of the PET-2217 status for administrators. If the Trap function is enabled, the module can send a message to the manager when there is a change in I/O status or if the module reboots, keeping track of the channel status at all times.
Applications
-
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.
Specifications
| Software |
| Built-in Web Server |
Yes |
| CPU Module |
| CPU |
32-bit ARM |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| 2-way Isolation |
Ethernet: 1500 VDC
I/O: 3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| LED Indicators |
| Status |
Run, Ethernet, PoE |
| Analog Input |
| Channels |
8 Differential or 16 Single-ended |
| Type |
Voltage
Current |
| Range |
Voltage: ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V
Current: ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (DIP switch selectable) |
| Resolution |
16-bit |
| Accuracy |
Normal Mode: ±0.1% of FSR
Fast Mode: ±0.5% of FSR |
| Sampling Rate |
Normal Mode: 20 Hz (total channels)
Fast Mode: 200 Hz (total channels) |
| Input Impedance |
Voltage: 2 MΩ (Differential), 1 MΩ (Single-ended)
Current: 137 Ω (Differential) |
| Common Voltage Protection |
±200 VDC |
| Overvoltage Protection |
120 VDC |
| Individual Channel Configuration |
Yes |
| Open Wire Detection |
For 4 to 20 mA only |
| Ethernet |
| Ports |
2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| PoE |
Yes |
| LAN bypass |
Yes |
| Security |
Password and IP Filter |
| Protocol |
Modbus TCP, Modbus UDP, MQTT, and SNMP V2c |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
3.5 W (max.) |
| Powered from PoE |
IEEE 802.3af, Class1 |
| Powered from Terminal Block |
+10 to +48 VDC |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
33 x 127 x 117 (W x L x H) |
| Installation |
DIN-Rail mounting / Wall mounting (Optional ASO-0015) |
| Environment |
| Operating Temperature |
-25 to +75 °C |
| Storage Temperature |
-40 to +80 °C |
| Humidity |
10 to 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PET-2217 CR |
PoE Ethernet I/O Module with 2-port Ethernet Switch, 8/16-ch Analog Input (RoHS) |
