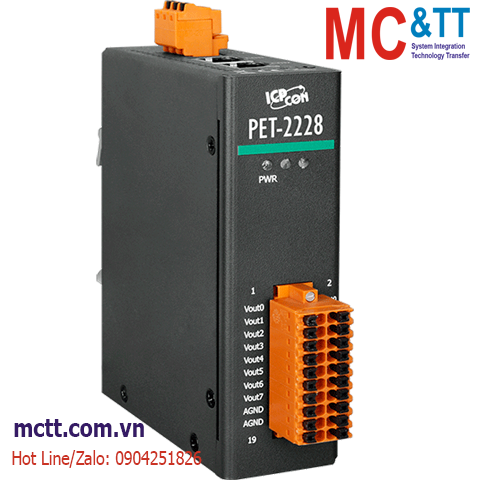

Module 2 cổng PoE Ethernet Modbus TCP & MQTT 8 kênh AO ICP DAS PET-2228 CR
Features
- Built-in Web Server
- Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
- 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
- Dual Watchdog
- I/O Pair Connection (Push and Pull)
- Built-in I/O
- ET-2224/PET-2224: 4-channel AO
- ET-2228/PET-2228: 8-channel AO
Introduction
The PET-2228 provides 8 channels analog output. It provides a variety of programmable analog output options (0 to 5 V, +/-5 V, 0 to 10 V, +/-10 V, 4 to 20 mA or 0 to 20 mA). With 2 Ethernet ports, the PET-2228 allows daisy chain connection which permits flexibility in locating devices, eases installation, and lowers infrastructure costs. It features 4 kV ESD protection, 4 kV EFT protection, 2 kV surge, and 3000 VDC I/O isolation are also provided to enhance noise protection capabilities in industrial environments. The power-on value and safe value of AO are configurable.
PET-2228 module supports MQTT protocol and can act as a message publisher and subscriber. After connecting to the server MQTT Broker, the I/O status of the module can be published in the form of a topic, and can also receive messages from the same subscription topics. In communication, when the PET-2228 module is disconnected from the broker, the module has a reconnection mechanism that can automatically reconnect with the broker. In addition, there is a Keep-Alive Interval mechanism to ensure that the connection with the Broker is always maintained.
The PET-2228 supports the standard SNMP V2c specification. Through this specification, ET-2200 can transmit module information and I/O information to SNMP network management equipment or software (SNMP Network Management Software) to help administrators monitor the status of ET-2200 in real time. If the Trap function is enabled, when the module I/O status changes or reboots, it can send a message to the manager to keep track of the channel status at any time.
Applications
Specifications
| Software |
| Built-in Web Server |
Yes |
| CPU Module |
| CPU |
32-bit ARM |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| 2-way Isolation |
Ethernet: 1500 VDC
I/O: 3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| LED Indicators |
| Status |
Run, Ethernet, PoE |
| Analog Output |
| Channels |
8 |
| Type |
Voltage: 0 to +5 VDC, ±5 VDC, 0 to +10 VDC, ±10 VDC
Current: 0 to 20 mA, 4 to 20 mA |
| Resolution |
12-bit |
| Accuracy |
±0.1% of FSR |
| Short Circuit Protection |
Yes |
| DA Output Response Time |
1 ms per channel |
| Programmable Output Slope |
Voltage: 0.0625 to 512 V/Second
Current: 0.125 to 1024 mA/Second |
| Open Wire Detection |
For 4 to 20 mA only |
| Voltage Output Capability |
10 V @ 10 mA |
| Current Load Resistance |
500 Ω |
| Individual Channel Configuration |
Yes |
| Power-on Value |
Programmable |
| Safe Value |
Programmable |
| Ethernet |
| Ports |
2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| PoE |
Yes |
| LAN bypass |
Yes |
| Security |
Password and IP Filter |
| Protocol |
Modbus TCP, Modbus UDP, MQTT, and SNMP V2c |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
7.4 W (max.) |
| Powered from PoE |
IEEE 802.3af, Class3 |
| Powered from Terminal Block |
+10 to +48 VDC |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
33 x 126 x 117 (W x L x H) |
| Installation |
DIN-Rail mounting / Wall mounting (Optional ASO-0015) |
| Environment |
| Operating Temperature |
-25 to +75 °C |
| Storage Temperature |
-40 to +80 °C |
| Humidity |
10 to 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PET-2228 CR |
PoE Ethernet I/O Module with 2-port Ethernet Switch, 8-ch Analog Outputs (RoHS) |
