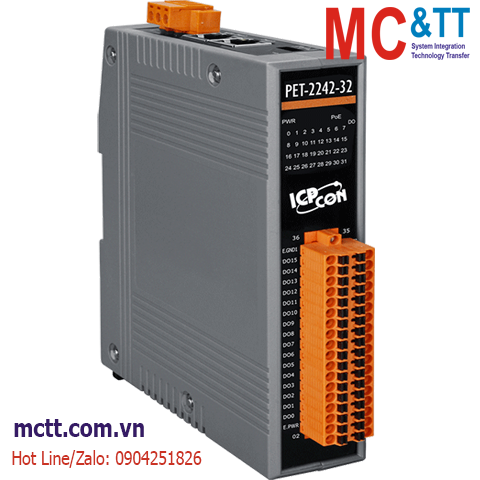

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 2 cổng PoE Ethernet Modbus TCP & MQTT 32 kênh DO ICP DAS PET-2242-32 CR
Features
Introduction
The PET-2242-32 provides 32 Digital Output channels, each of which features photo couple isolation. The PET-2242-32 supports sink-type output with short circuit protection and each channel can drive 600 mA load. There are configurable power-on and safe values for digital output. With 2 Ethernet ports, the PET-2242-32 allows a daisy chain connection which permits flexibility in locating devices, eases installation, and lowers infrastructure costs. It features 8 kV ESD protection, 4 kV EFT protection, 3 kV surge, and 3000 VDC I/O isolation to enrich the noise protection ability for industrial environment.
PET-2242-32 module supports MQTT protocol and can act as a message publisher and subscriber. After connecting to the server MQTT Broker, the I/O status of the module can be published in the form of a topic, and can also receive messages from the same subscription topics. In communication, when the PET-2242-32 module is disconnected from the broker, the module has a reconnection mechanism that can automatically reconnect with the broker. In addition, there is a Keep-Alive Interval mechanism to ensure that the connection with the Broker is always maintained.
The PET-2242-32 supports the standard SNMP V2c specification. Through this specification, ET-2200 can transmit module information and I/O information to SNMP network management equipment or software (SNMP Network Management Software) to help administrators monitor the status of ET-2200 in real time. If the Trap function is enabled, when the module I/O status changes or reboots, it can send a message to the manager to keep track of the channel status at any time.
Applications
Factory, Building and Home Automation Remote Maintenance.
Specifications
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3000 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±8 kV Contact for Each Terminal ±16 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±3 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | Run, Ethernet, I/O, PoE |
| Digital Output | |
|---|---|
| Channels | 32 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +3.5 to +50 VDC |
| Load Current | 600 mA/channel |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.4 A (with short-circuit protection) |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Security | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, and MQTT |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 4.2 W (max.) |
| Powered from PoE | IEEE 802.3af, Class1 |
| Powered from Terminal Block | +10 to +48 VDC |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 126 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 to +75 °C |
| Storage Temperature | -40 to +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
Download
Ordering Information
| PET-2242-32 CR | PoE Ethernet I/O Module with 2-port Ethernet Switch and 32-ch Sink-type DO (RoHS) |
