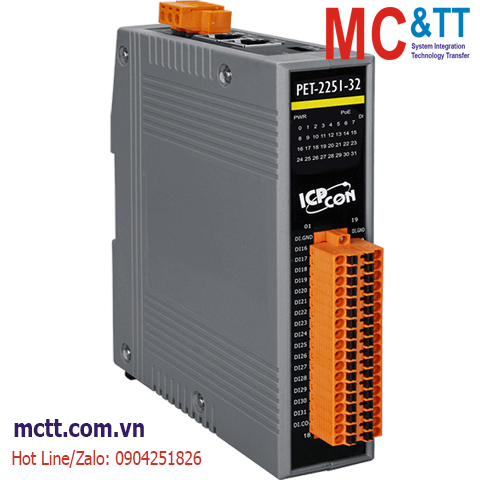

Module 2 cổng PoE Ethernet Modbus TCP & MQTT 32 kênh DI ICP DAS PET-2251-32 CR

Module 2 cổng PoE Ethernet Modbus TCP & MQTT 32 kênh DI ICP DAS PET-2251-32 CR

Features

• Built-in Web Server
• Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
• 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
• Dual Watchdog
• I/O Pair Connection (Push and Pull)
• Built-in I/O
  • 32-channel Wet contact & Dry contact DI
• LED Display to Indicate the I/O status

Introduction

Providing various digital I/O functions, the PET-2251-32 module is an Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP protocol. Modbus has become a de facto standard communications protocol in industry and is now the most commonly available means of connecting industrial electronic devices. This makes the PET-2251-32 module perfect integration with the HMI, SCADA, PLC, and other software systems.

The PET-2251-32 provides 32 wet-contact & dry-contact digital input channels. With 2 Ethernet ports, the PET-2251-32 allows a daisy chain connection which permits flexibility in locating devices, eases installation, and lowers infrastructure costs. It features 8 kV ESD protection, 4 kV EFT protection, 3 kV surge, and 3000 VDC I/O isolation are also provided to enhance noise protection capabilities in industrial environments. Each input channel can be used as a 32-bit counter.

The module can be used to create a DI to DO pair-connect through the Ethernet. After configuration, the PET-2251-32 module can poll the status of the local DI channels and then use the Modbus/TCP protocol to continuously write to the remote DO devices.

It is equipped with a removable terminal block connector for easy and robust wiring in industrial situations and features a powerful 32-bit ARM MCU to handle efficient network trafficking.

PET-2251-32 module supports MQTT protocol and can act as a message publisher and subscriber. After connecting to the server MQTT Broker, the I/O status of the module can be published in the form of a topic, and can also receive messages from the same subscription topics. In communication, when the PET-2251-32 module is disconnected from the broker, the module has a reconnection mechanism that can automatically reconnect with the broker. In addition, there is a Keep-Alive Interval mechanism to ensure that the connection with the Broker is always maintained.

The PET-2251-32 supports the standard SNMP V2c specification. Through this specification, ET-2200 can transmit module information and I/O information to SNMP network management equipment or software (SNMP Network Management Software) to help administrators monitor the status of ET-2200 in real time. If the Trap function is enabled, when the module I/O status changes or reboots, it can send a message to the manager to keep track of the channel status at any time.

Applications

• Factory, Building and Home Automation Remote Maintenance.

Specifications
