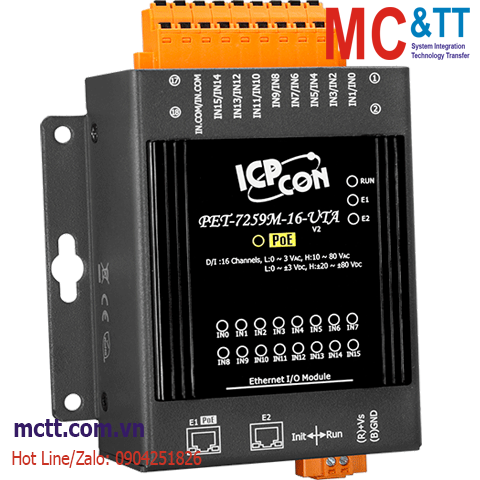

Module 2 cổng PoE Ethernet Modbus TCP 16 kênh AC/DC DI ICP DAS PET-7259M-16-UTA CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

PoE Ethernet I/O Module with 2-port Ethernet Switch and 16-ch Isolated DI

THÔNG TIN SẢN PHẨM

Features

Built-in Web Server
Web HMI
Support for both Modbus TCP and Modbus UDP Protocols
Communication Security
2-port Ethernet Switch for Daisy-Chain Topology
Dual Watchdog
Built-in I/O
- AC/DC Digital Input: 16 Channels

Introduction

The PET-7259M-16-UTA provides 16 AC/DC digital input channels. Each input channel can be used as a 32-bit counter. It features optical isolation for 2500 VDC of transient over voltage protection but doesn't provide channel-to-channel isolation. It can safely be used in applications where hazardous voltages are present.

Applications

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.

Specifications

Software
Built-in Web Server	Yes

CPU Module
Watchdog Timer	Module, Communication (Programmable)

Isolation
2-way Isolation	I/O: 2500 VDC

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for Each Terminal ±8 kV Air for Random Point

LED Indicators
Status	Run, Ethernet, I/O, PoE

Digital Input/Counter
Channels	16
Type	Wet Contact
Sink/Source (NPN/PNP)	Sink/Source
ON Voltage Level	15 to 90 VAC ±20 to ±90 VDC
OFF Voltage Level	3 VAC (max.) ±3 VDC (max.)
Max. Counts	4,294,967,295 (32-bit)
Frequency	100 Hz
Min. Pulse Width	5 ms
Input Impedance	30 kΩ
Overvoltage Protection	120 VAC

Ethernet
Ports	2 x RJ-45, 10/100 Base-TX, Switch Ports
PoE	Yes
LAN bypass	Yes
Security	ID, Password and IP Filter
Protocol	Modbus TCP, Modbus UDP

Power
Reverse Polarity Protection	Yes
Consumption	2.8 W (max.)
Powered from PoE	IEEE 802.3af, Class1
Powered from Terminal Block	+12 to +48 VDC

Mechanical
Dimensions (mm)	97 x 130 x 38 (W x L x H)
Installation	DIN-Rail mounting

Environment
Operating Temperature	-40 to +75°C
Storage Temperature	-30 to +80°C
Humidity	10 to 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PET-7259M-16-UTA CR

PoE Ethernet I/O Module with 2-port Ethernet Switch, with 16-channel Digital Input (RoHS) -40 to 75°C Operating Temperature
