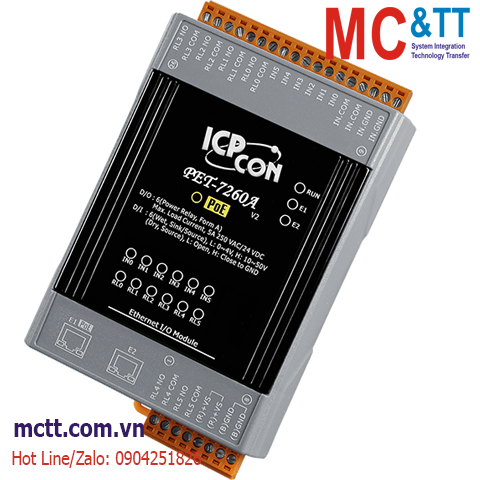

Module 2 Cổng PoE Ethernet Modbus TCP 6 kênh DI+6 kênh Power Relay ICP DAS PET-7260A CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

PoE Ethernet I/O Module with 2-port Ethernet Switch, 6-ch Power Relay and 6-ch DI

THÔNG TIN SẢN PHẨM

Features

Built-in Web Server
Web HMI
Support for both Modbus TCP and Modbus UDP Protocols
Communication Security
2-port Ethernet Switch for Daisy-Chain Topology
Dual Watchdog
I/O Pair Connection
Built-in I/O
- DI/Counter: 6 Channels
- Power Relay: 6 Channels

Introduction

The PET-7260A provides full networking capabilities, and a variety of I/O functions, together with a web-based user interface server for easy configuration. The PET-7260A can be remotely controlled using the Modbus TCP/UDP protocol. This makes the PET-7260A to be well integrated with HMI, SCADA, PLC, and other industrial control software systems.

The PET-7260A comes with two built-in Ethernet switch ports, which are helpful to reduce implementation costs as there is no need to install an additional switch in order to daisy chain the ports or to extend the network via the Ethernet line.

The PET-7260A supports IEEE 802.3af Power-Over-Ethernet (Class 1) specifications. By connecting to network devices that support the IEEE 802.3af PoE standard, power can be supplied via a copper Ethernet cable.

Applications

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.

Specifications

Software
Built-in Web Server	Yes

CPU Module
Watchdog Timer	Module, Communication (Programmable)

Isolation
2-way Isolation	I/O: 3000 VDC

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for Each Terminal ±8 kV Air for Random Point
Surge (IEC 61000-4-5)	±2 kV for Power Line

LED Indicators
Status	Run, Ethernet, I/O, PoE

Digital Input/Counter
Channels	6
Type	Dry Contact Wet Contact
Sink/Source (NPN/PNP)	Dry: Source Wet: Sink/Source
ON Voltage Level	Dry: Close to GND Wet: +10 to +50 VDC
OFF Voltage Level	Dry: Open Wet: +4 VDC (max.)
Max. Counts	4,294,967,295 (32-bit)
Frequency	100 Hz
Min. Pulse Width	5 ms
Effective Distance	500m (max.)
Input Impedance	10 kΩ
Overvoltage Protection	+70 VDC

Relay Output
Channels	6
Type	Power Relay, Form A (SPST N.O.)
Contact Rating	5 A @ 250 VAC/24 VDC (Resistive Load)
Operate Time	10 ms (max.)
Release Time	5 ms (max.)
Electrical Endurance	10^5 ops.
Mechanical Endurance	2 × 10^7 ops.
Power on Value	Programmable
Safe Value	Programmable

Ethernet
Ports	2 x RJ-45, 10/100 Base-TX, Swtich Ports
PoE	Yes
LAN bypass	Yes
Security	ID, Password and IP Filter
Protocol	Modbus TCP, Modbus UDP

Power
Reverse Polarity Protection	Yes
Consumption	3.8 W (max.)
Powered from PoE	IEEE 802.3af, Class1
Powered from Terminal Block	+12 to +48 VDC

Mechanical
Dimensions (mm)	76 x 120 x 38 (W x L x H)
Installation	DIN-Rail mounting

Environment
Operating Temperature	-25 to +75°C
Storage Temperature	-30 to +80°C
Humidity	10 to 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PET-7260A CR

PoE Ethernet I/O Module with 2-port Ethernet Switch and 6-ch Relay Output and 6-ch DI (RoHS)
