Card PCI Express 8 kênh đầu ra tương tự AO + 16 kênh đầu vào số DI + 16 kênh đầu ra số DO ICP DAS PEX-DA8 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

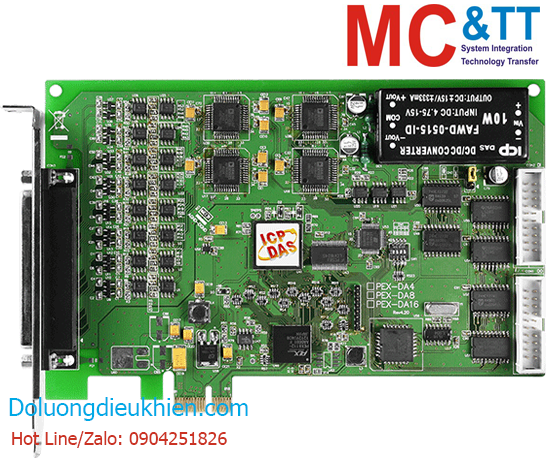

PCI Express, 8-ch, 14-bit AO Board

THÔNG TIN SẢN PHẨM

Features

Supports PCI Express x1
8 channels, 14-bit analog output
Voltage output range: ±10 V
Current output range: 0 ~ 20 mA (sink)
Two timer/counter interrupt sources
Software calibration
16 channels Digital Input
16 channels Digital Output
Card ID Function(SMD Switch)
Pull-high/Pull-low Jumpers for DI Ports

Introduction

For the PEX-DA series, their voltage output range is from -10 V to +10 V, and their current output range is from 0 to 20 mA. In addition, These cards also feature the following advantages by ICP DAS's innovation: Accurate and easy-to-use calibration. ICP DAS provides the software calibration instead of the manual calibration so that no jumpers and trim-pots are required anymore.

The calibration information can be saved in EEPROM for long-term use. Individual channel configuration.In other words, every channel can be individually configured as voltage output or current output! ICP DAS provides the Card ID function. Users can set card ID for each card and then recognize them one by one when more than two boards are used in a computer.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

Accessories

Specification

Hardware
Card ID	Yes (4-bit)
Connector	Female DB37 x 1 20-pin Box header x 2

Analog Output
Channels	8
Range	Voltage: ± 10 V Current: 0 ~ 20 mA
Resolution	14-bit
Accuracy	0.04% of FSR ± 2 LSB @ 25 °C, ± 10 V
Voltage Output Capability	±5 mA
Response Time	166 kHz (Typical)
Slew Rate	0.71 V/μs
Operation Mode	Static Update

Digital Input
Channels	16
Type	5 V/TTL
TTL Input, ON Voltage Level	2.0 V Min.
TTL Input, OFF Voltage Level	0.8 V Max.
Response Speed	500 kHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	16
Type	5 V/CMOS
Operation Mode	Static Update
Voltage	Logic 0: 0.1 V Max. Logic 1: 4.4 V Min.
Max. Load Current	Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V
Response Speed	500 kHz (Typical)

Timer/Counter/Frequency
Channels	3
Type	5 V/TTL
Resolution	16-bit
Reference Clock	Internal: 4 MHz

PC Bus
Type	PCI Express x 1
Data Bus	8-bit

Power
Consumption	750 mA@ +3.3 V 400 mA@ +12 V

Mechanical
Dimensions (mm)	116.4 x 172.6 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Ordering information

PEX-DA8 CR

PCI Express, 14-bit, 8-ch Analog Output Board (RoHS)
Includes one CA-4002 D-Sub connector
