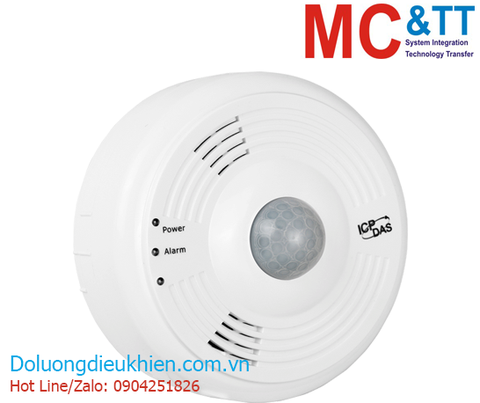

Module phát hiện chuyển động PIR + đo nhiệt ICP DAS PIR-130-AC CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

PIR Motion Sensor (4m) and Temperature Sensor Module (AC powered)

THÔNG TIN SẢN PHẨM

Feature

360° Motion Detection Up to 8 m Diameter Range
Time-Delay / Lux. / Sensitivity Adjustable
Photo Sensor Inside for Smart Switch-on Control
LED Indicator for PIR/Temperater Sensor
The Temperature Sensor for Measuring Room Temperature or Fire Alarm
Relay Output Can be Used to Control the Light Via the PIR/Temperature Sensor
Up to 1500 W Incandescent and 300 W Fluorescent (T8) Loading Capability
RS-485 Communication Interface
DCON and Modbus RTU Protocols
Ceiling Surface Mount Design

Introduction

The PIR-130 module includes a 1-channel passive infrared (PIR) sensor that is able to detect infrared waves generated by human within a range of approximately 8 meters in diameter with a 360° coverage area. The PIR-130 is used for indoor motion detection, and can be configured to automatically switch on a light if motion is detected. The PIR-130 module also includes a 1-channel temperature sensor that can be used for measuring room temperature or can be configured to activate a fire alarm.

Specifications

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for each Terminal, ±8 kV Air for Random Point

LED Indicators
Status	Yes, 1 as Power/Communication Indicator. 1 as Alarm Indicator

PIR
Detection Height	4 meters Max.
Detection Field of View	360°; 8 m Diameter Max.
Lux Control Level	Hardware: 2 modes (Dawn and dust) / Software: 5-step
Delay Time	Hardware: 8-step Switch-selectable (seconds): 6, 16, 33, 66, 131, 262, 524, 1049 Software: 16-step (seconds): 2, 4, 6, 8, 16, 33, 49, 66, 131, 262, 393, 524, 1049, 2097, 3146, 4194
PIR Response Time	1 second

Temperature Measurement
Fire Alarm	65°C (Programmable)
Range	-25 ~ +100°C
Resolution	0.0625°C
Accuracy	±2°C

Relay Output
Channels	1
Type	Power Relay, Form C
Contact Rating	NO: 10 A @ 250 VAC NC: 6 A @ 250 VAC

COM Ports
Ports	1 x RS-485
Baud Rate	1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Protocol	DCON, Modbus RTU

Power
Reverse Polarity Protection	Yes
Input Range	110 ~ 220 VAC
Consumption	2 W

Mechanical
Dimensions (mm)	Ø121 x 52 (Ø x H)
Installation	Ceiling mounting
Ingress Protection Rating	IP20

Environment
Operating Temperature	0 ~ +35°C
Storage Temperature	-30 ~ +80°C
Humidity	10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PIR-130-AC CR

PIR Motion Sensor (4m) and Temperature Sensor Module (RS-485) (110~220 VAC powered) (RoHS)
