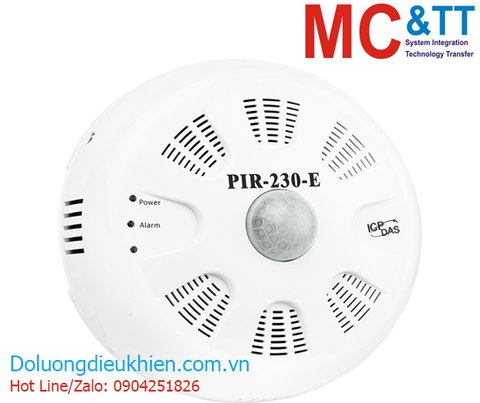

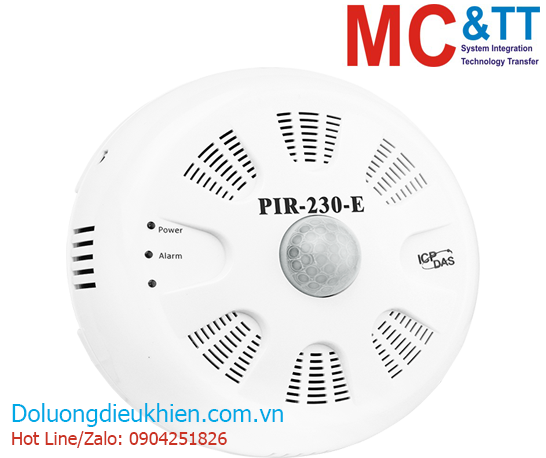

Module phát hiện chuyển động PIR + đo nhiệt/ẩm ICP DAS PIR-230-E CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

R Motion Sensor (4m), Temperature and Humidity Sensor Module

Gọi +84 904251826 để được trợ giúp

Module phát hiện chuyển động PIR + đo nhiệt/ẩm ICP DAS PIR-230-E CR

Features

  • Adjustable Time-Delay / Lux / Sensitivity (Lux/Sensitivity PIR-230 Only)
  • Internal Photosensor for Smart Switch Control
  • LED Indicator for PIR/Temperature Sensor
  • Temperature Sensor for Measuring Room Temperature
  • Suitable as either Temperature or Fire Alarm
  • Relay Output Can be Used to Control Light Via the PIR/Temperature Sensor
  • Suitable for loads up to 1500 W (Incandescent) and 300 W (Fluorescent)
  • Fluorescent (T8) Loading Capability
  • Wide range of Communication Interfaces and Protocols
  • Compatible with IEEE802.11b/g/n standards (PIR-230/PIR-231 Only)
  • Support infrastructure and limit-AP modes for wireless networks (PIR-230-WF/PIR-231-WF Only)
  • Ceiling or Surface-Mount Design

Introduction

PIR series modules have the ability to detect infrared waves generated by the human body within a diameter of approximately 8 meters, with a coverage area of 360° for indoor motion detection. The modules can be configured to automatically switch on a light if motion is detected. The modules also contain a temperature and humidity sensor for measuring indoor temperature and humidity, or it can be configured to activate a fire alarm. A wide range of interface connections can be selected to suit individual needs, including RS-485/Ethernet/Wi-Fi, provide support for the DCON and Modbus RTU/TCP protocols, and can be easily integrated into existing HMI/SCADA/central control systems. A free Utility is also included that allows configuration information and data to be displayed in a powerful chart format that can be exported to Microsoft Excel.

The screw-free quick-connect connector and the DIP and rotary switches make the modules easy to install, repair, and maintain. The casing of each module is made from UL94-V2 rated fireproof material, and the white minimalist exterior design ensures that it is easy to match with interior decoration.

Specifications

EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal, ±8 kV Air for Random Point



LED Indicators
Status Yes, 1 as Power/Communication Indicator. 1 as Alarm Indicator



Motion and Occupancy
Delay Time Hardware: 8-step Switch-selectable (seconds): 6, 16, 33, 66, 131, 262, 524, 1049
Software: 16-step (seconds): 2, 4, 6, 8, 16, 33, 49, 66, 131, 262, 393, 524, 1049, 2097, 3146, 4194
Height Detection 4 m Max.
Lux Control Level Hardware: 2 mode (Dawn and dust) / Software: 5-step
Motion Detection Field of View 360°; 8 m Diameter Max.
PIR Response Time 1 second



PIR
Detection Field of View 360o; Diameter 8 meters Max.



Temperature Measurement
Fire Alarm 65°C (Programmable)
Range -40 ~ +120°C
Resolution 0.01°C
Accuracy ±0.5°C (at 0 ~ 60°C)



Humidity Measurement
Accuracy ±5% RH
Range 0 ~ 100% RH
Resolution 0.01% RH



Digital Input
Channels 2
Type Wet
Wet Contact, ON Voltage Level 70 ~ 220 VAC
Wet Contact, OFF Voltage Level 20 VAC Max.
Input Impedance 68 KΩ, 1 W



Relay Output
Channels 1
Type Power Relay, Form C
Contact Rating NO: 10 A @ 250 VAC
NC: 6 A @ 250 VAC



COM Ports
Ports 1 x RS-485
1 x Ethernet/PoE
Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Protocol DCON, Modbus RTU, Modbus TCP



Power
Reverse Polarity Protection Yes
Input Range 18 ~ 48 VDC, PoE
Consumption 2 W



Mechanical
Dimensions (mm) Ø150 x 53 (Ø x H)
Installation Ceiling /surface mounted
Ingress Protection Rating IP20



Environmental
Operating Temperature 0 ~ +35°C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering infromation

PIR-230-E CR  PIR Motion Sensor (4 m), Temperature and Humidity Sensor Module (RS-485, Ethernet PoE) (RoHS)
