Miễn phí vận chuyển với đơn hàng từ 10.000.000đCard PCI 4 cổng CAN FD ICP DAS PISO-CAN400U-FD-D CR
Features
Introduction
CAN FD (CAN with Flexible Data-Rate) is a newer extension version of the CAN 2.0 protocol. It was developed by Bosch and was released in 2012. It has been significantly improved during the standardization process and is nowadays in ISO 11898-1:2015. The CAN FD speeds up the data transmission and packs more data into each message.

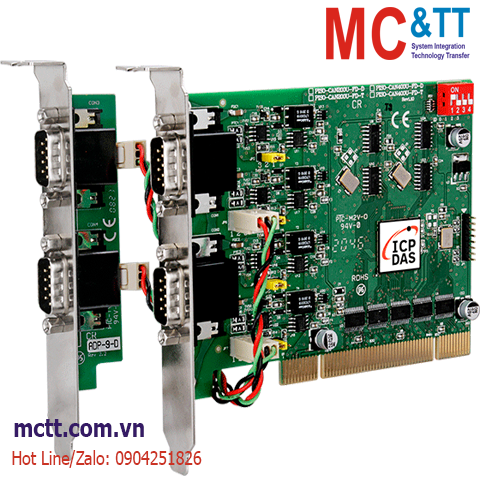

PISO-CAN400U-FD-D is a very powerful and economic solution for an active CAN board. It has four independent CAN bus communication ports with 9-pin D-sub connector, and has the ability to cover a wide range of CAN FD applications. It uses Microchip CAN FD controllers and TI TCAN1042HG series transceivers, which provide bus arbitration and error detection features, combined with auto-correction and re-transmission functionality.
Applications
Click to view the Introduction of https://mctt.vn/can-bus-icp-das
Specifications
| Software | |
|---|---|
| Driver | Windows 7/8.1/10 (32-bit/64-bit OS) |
| SDK | C#.Net, VB.Net, VC++.Net |
| PC Bus | |
|---|---|
| Type | Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit, plug and play |
| Board No. | Configurable via DIP switch |
| CAN | |
|---|---|
| Controller | Microchip MCP2518FD |
| Ports | 4 |
| Baud Rate | CAN bit rates: 10 k ~ 1 M bps, CAN FD bit rates for data field: 100 k ~ 10 M bps (*Note1) |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Specification | ISO 11898-2, CAN 2.0 A/B and FD |
| Filter | Yes |
| Power | |
|---|---|
| Consumption | 200 mA @ 5V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 121.7 x 21.6 x 92.7 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specification Memo
Note1: The maximum CAN FD data rate can be exceeded depending on the concrete operating conditions (cable length, network topology, settings,...), but it can also not be reached.
Download
Ordering Information
| PISO-CAN400U-FD-D CR | 4-port Isolated Protection CAN FD Universal PCI Card with 9-pin D-sub connector, including a ADP-9-D board (RoHS) |
